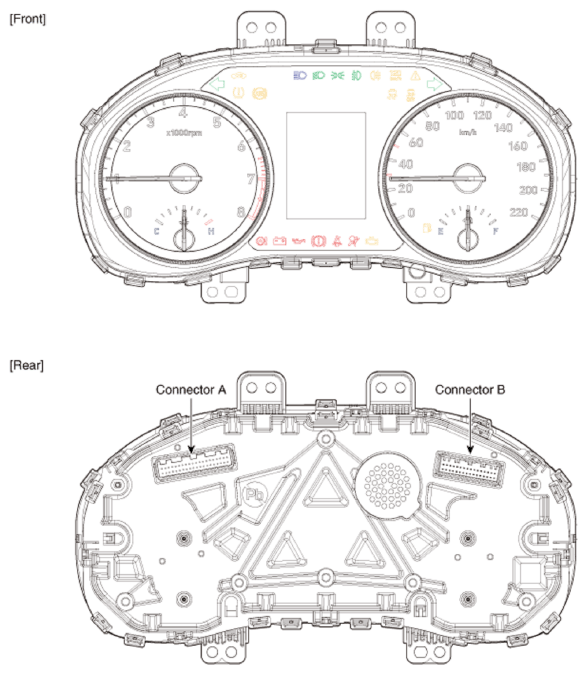

Components And Components Location: Components: Supervision
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

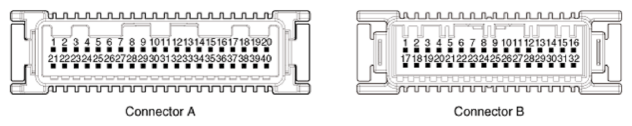

Connector Pin Information
| No | Description | |
|---|---|---|
| Connector A | Connector B | |
| 1 | Ground signal 3 | Turn Signal Lamp_Right input |
| 2 | Illumination (-) | Turn Signal Lamp_Left input |
| 3 | Rheostat switch (Down) input | Head lamp high (+) |
| 4 | Rheostat switch (Up) input | Head lamp low (+) |
| 5 | Detent output | Front fog lamp (+) |
| 6 | AT ('P' position) | Rear fog lamp (+) |
| 7 | AT ('R' position) | Rear fog lamp switch (+) |
| 8 | AT ('N' position) | Door open switch |
| 9 | AT ('D' position) | Driver side door open switch (+) |
| 10 | AT ('S' position) | Trunk open switch (-) |
| 11 | Immobilizer input | Hood open switch (-) |
| 12 | Vehicle speed output | Key in switch (-) |
| 13 | Alternator input | Tail lamp switch (-) |
| 14 | Fuel sender input | Rear defogger switch input |
| 15 | Vehicle speed input | Rear SBR buzzer input |
| 16 | Fuel sender input | Brake oil switch |
| 17 | Water separator input | Parking brake switch input |
| 18 | Airbag input | Heated glass switch input |
| 19 | Oil pressure switch input | Seat belt driver switch input |
| 20 | Tail lamp input | Seat belt assist switch input |
| 21 | Trip switch (-) | Assist seat mat switch input |
| 22 | Trip Switch 1 (+) | Sunroof open switch input |
| 23 | Trip Switch 2 (+) | Ground signal 1 |
| 24 | Sport Switch input | Heated washer nozzle output |
| 25 | Driver mode switch input | Rear defogger relay output |
| 26 | R (MT) input | Heated glass relay output |
| 27 | - | Assist seat belt indicator output |
| 28 | Low washer level input | Tail lamp relay output |
| 29 | B CAN (Low) | Rear SBR indicator SYNC output |
| 30 | B CAN (High) | - |
| 31 | Alternator Output | - |
| 32 | C CAN (High) | - |
| 33 | C CAN (Low) | |
| 34 | Outside Temp input | |
| 35 | FFV 5V output/LPI Fuel input | |
| 36 | Heated wheel indicator input (NAS Only) | |
| 37 | Ground signal | |
| 38 | LDC (+) input | |
| 39 | IGN (+) | |
| 40 | Battery (+) | |
