Repair Procedures: Installation
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

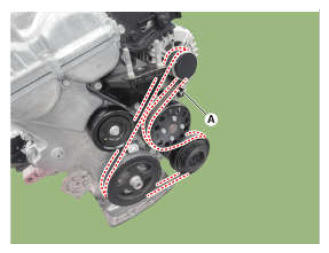

- Install the drive belt (A).

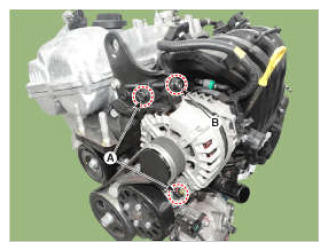

- Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).
Tightening Torque:
12mm (0.47in) bolt [Part No: 11403-08407B]
24.3 - 26.9 Nm (2.48 - 2.74 kgf.m, 17.9 - 19.8 Ib-ft)
12mm (0.47in) bolt [Part No: 11405-08406K]
26.5 - 32.4 Nm (2.7 - 3.3 kgf.m, 19.5 - 23.9 Ib-ft)
14mm (0.55in) bolt:
29.4 - 41.2 Nm (3.0 - 4.2 kgf.m, 21.7 - 30.4 Ib-ft)
