Component Location

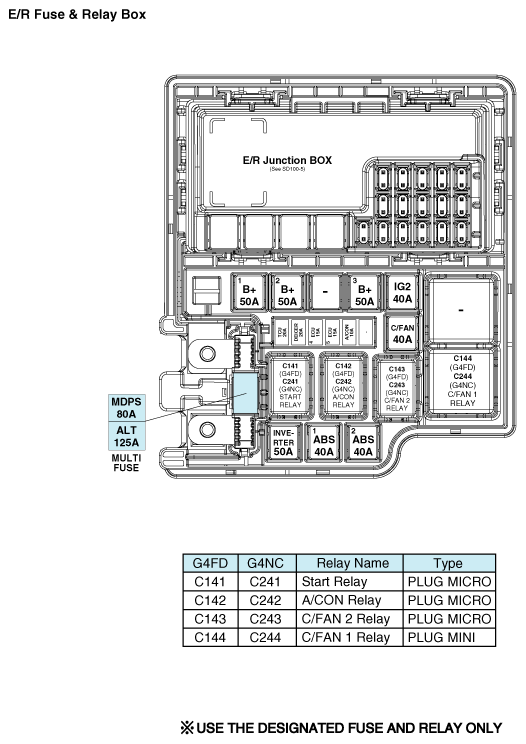

ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Start Relay |
| A/C Relay |
| Cooling Fan Relay 2 |
| Cooling Fan Relay 1 |
ENGINE ROOM RELAY BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MULTI FUSE | MDPS | 80A | MDPS Unit | |||||||||
| ALT | 125A | Fuse - ABS 1, ABS 2, INVERTER, Multi-Fuse - MDPS | ||||||||||
| FUSE | B+ 1 | 50A | Smart Junction Box (Fuse (S/HEATER FRT, S/HEATER RR, T/GATE OPEN, DR LOCK, P/WDW LH, P/WDW RH, AMP, MODULE 7)) |
|||||||||
| B+ 2 | 50A | Smart Junction Box (Fuse (P/SEAT DRV, SUNROOF 1, SUNROOF 2, STOP LAMP) IPS1, Arisu-LT2) | ||||||||||
| B+ 3 | 50A | Smart Junction Box (Fuse (PDM 1, PDM 2, BRAKE SW 2, Leak Current Autocut Device) IPS1, Arisu-LT1) | ||||||||||
| IG 2 | 40A | Start Relay, Ignition Switch, E/R Junction Box (Button Start (IG2) Relay) | ||||||||||
| TCU | 20A | - | ||||||||||
| DEICER | 20A | ICM Relay Box (Deicer Relay) | ||||||||||
| ECU 4 | 15A | ECM/PCM | ||||||||||
| ECU 5 | 15A | ECM/PCM | ||||||||||
| A/CON | 10A | A/CON Relay | ||||||||||
| C/FAN | 40A | C/FAN 1 Relay, C/FAN 2 Relay | ||||||||||
| INVERTER | 50A | Oil Pump Inverter | ||||||||||
| ABS 1 | 40A | ESC Module | ||||||||||
| ABS 2 | 40A | ESC Module | ||||||||||
| * USE THE DESIGNATED FUSE AND RELAY ONLY | ||||||||||||

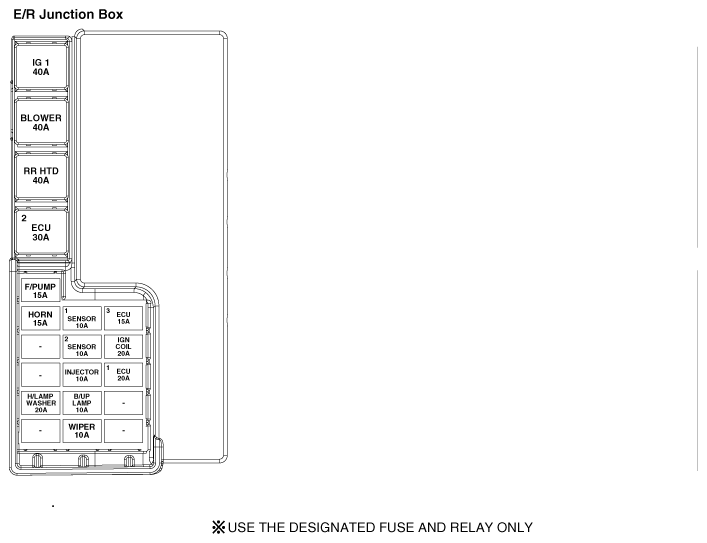

E/R JUNCTION BOX FUSE IDENTIFICATION LEGEND (G4FD)
