Fuses And Relays
>>
Components And Components Location
>>
Component Location
Component Location

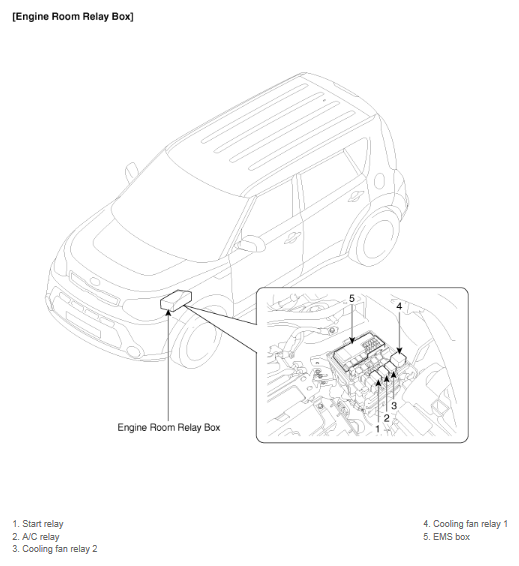

Fig 1: Engine Room Relay Box Components
Courtesy of KIA MOTORS AMERICA, INC.

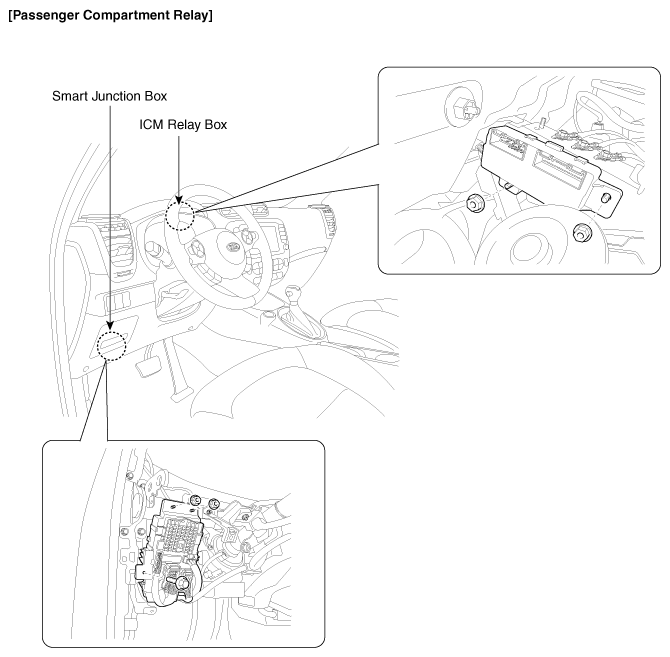

Fig 2: Passenger Compartment Relay Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
