Vehicle S/W Management

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W management" about related DTC with KDS.

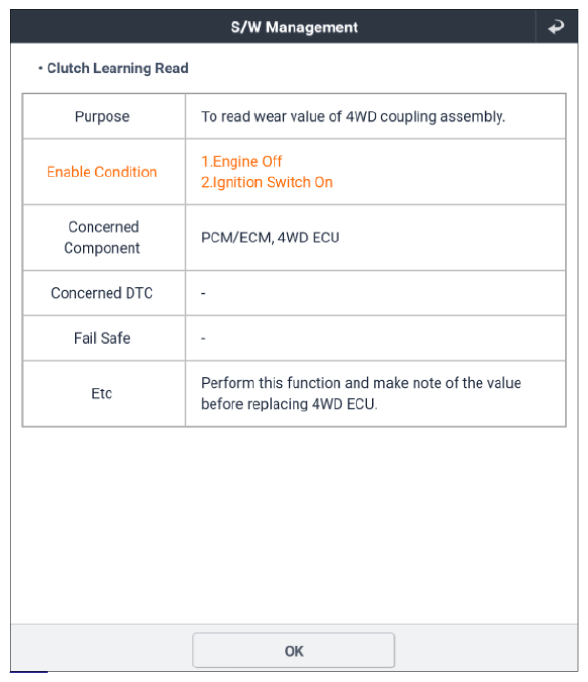

G12841118Courtesy of KIA MOTORS AMERICA, INC.

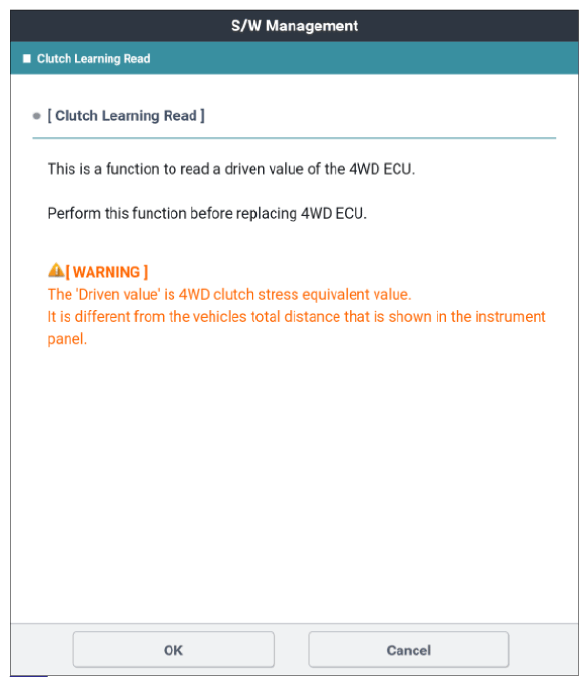

G12841119Courtesy of KIA MOTORS AMERICA, INC.

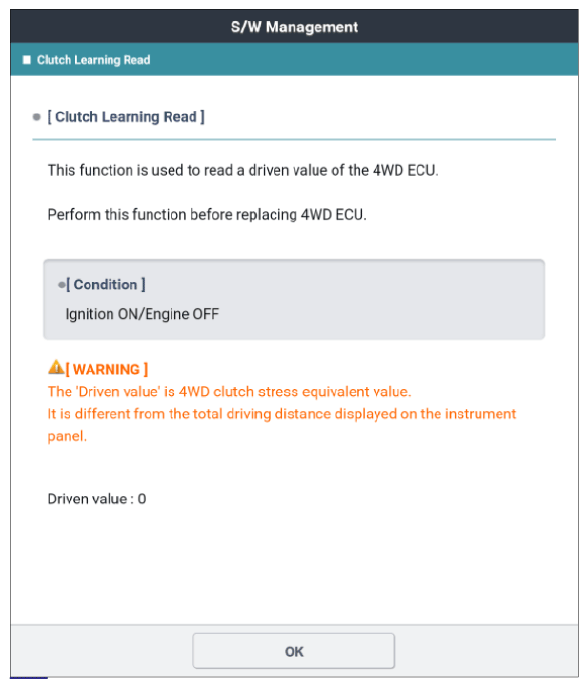

G12841120Courtesy of KIA MOTORS AMERICA, INC.

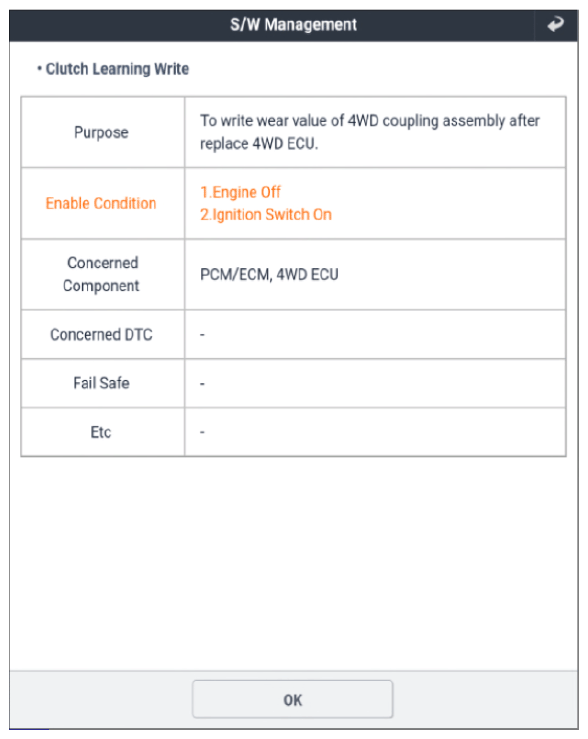

G12841121Courtesy of KIA MOTORS AMERICA, INC.

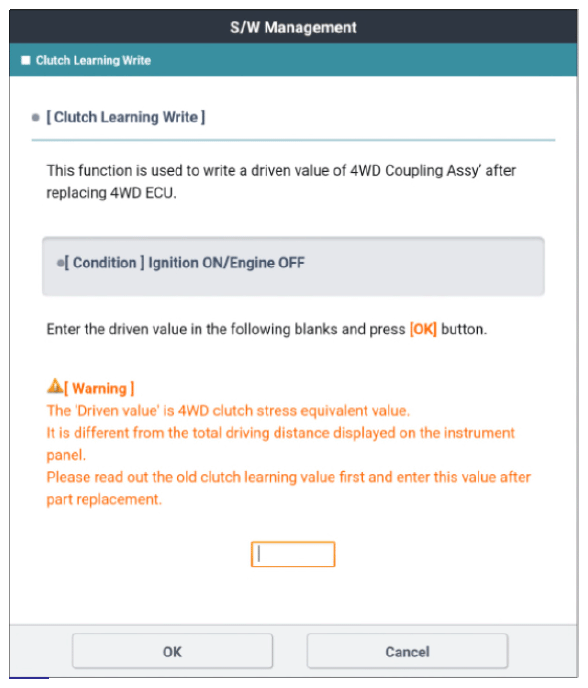

G12841122Courtesy of KIA MOTORS AMERICA, INC.
G12841123Courtesy of KIA MOTORS AMERICA, INC.
