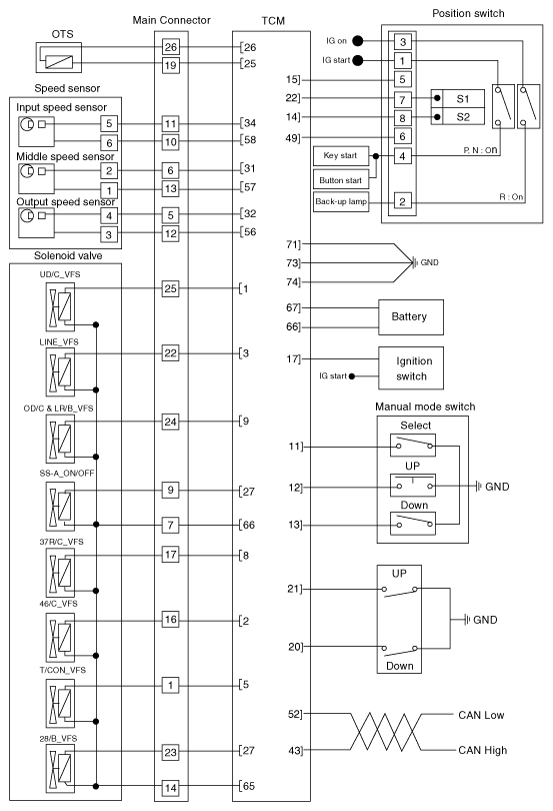

Home >> Kia >> 2019 >> Sorento EX, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 3.3L >> Transaxle Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
