Variant Coding

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Variant Coding" in "Vehicle S/W management" with KDS.

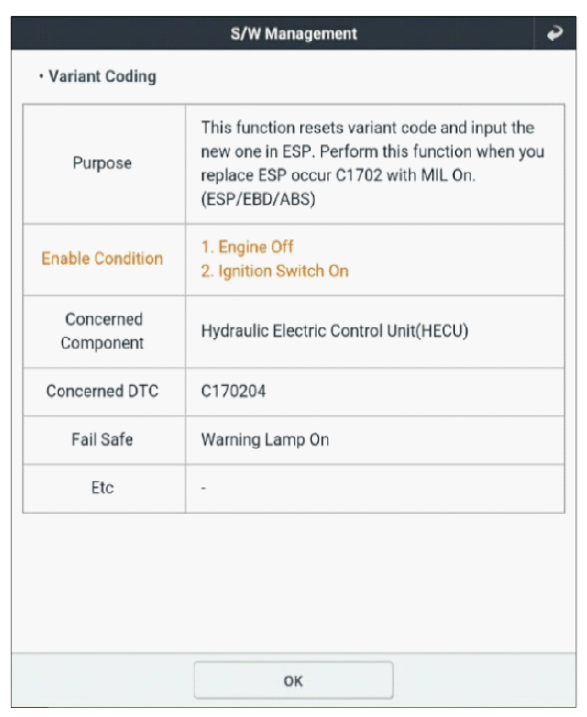

G12839509Courtesy of KIA MOTORS AMERICA, INC.

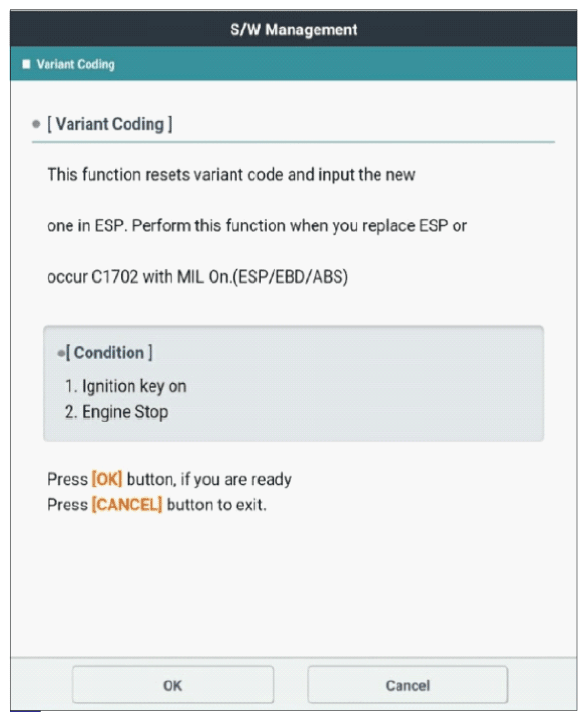

G12839510Courtesy of KIA MOTORS AMERICA, INC.

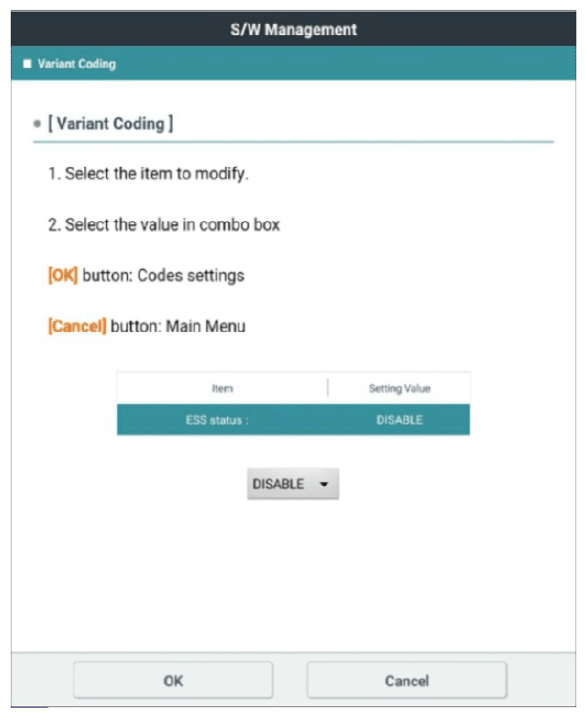

G12839511Courtesy of KIA MOTORS AMERICA, INC.

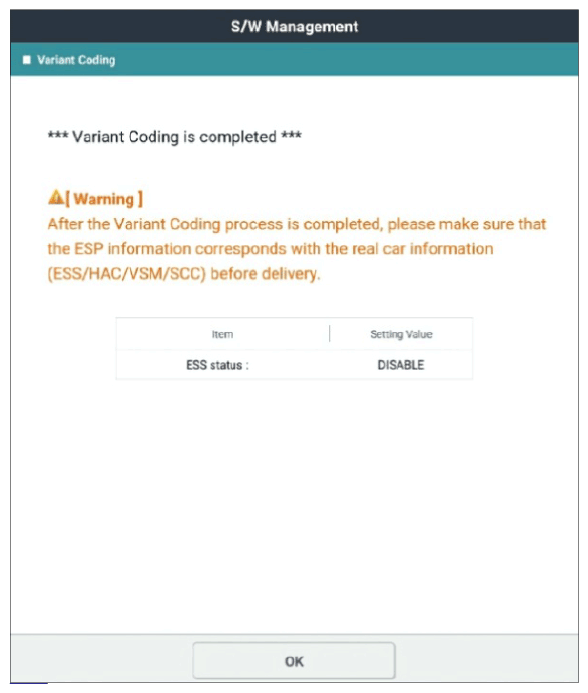

G12839512Courtesy of KIA MOTORS AMERICA, INC.

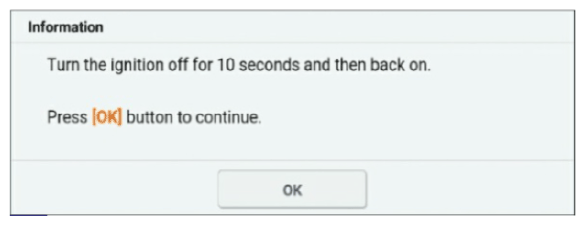

G12839513Courtesy of KIA MOTORS AMERICA, INC.
