Variant Coding

  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W management" on KDS.
  5. Perform "Variant Coding" in "Vehicle S/W management" with KDS.

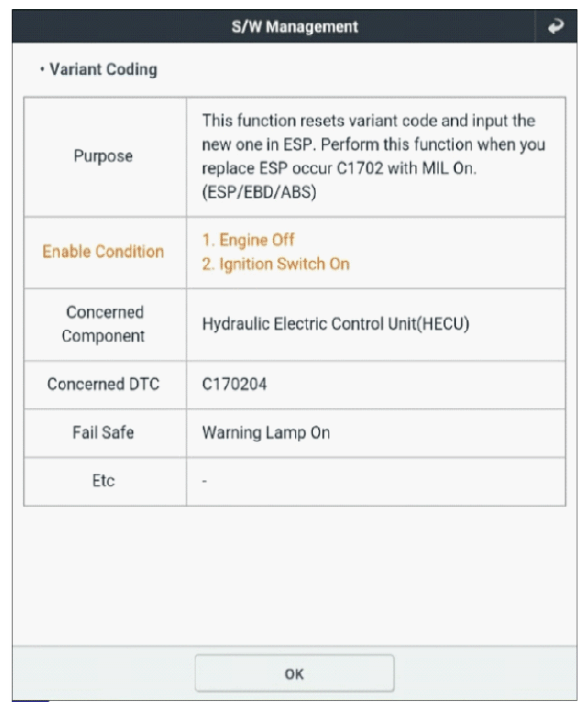

G12839330Courtesy of KIA MOTORS AMERICA, INC.

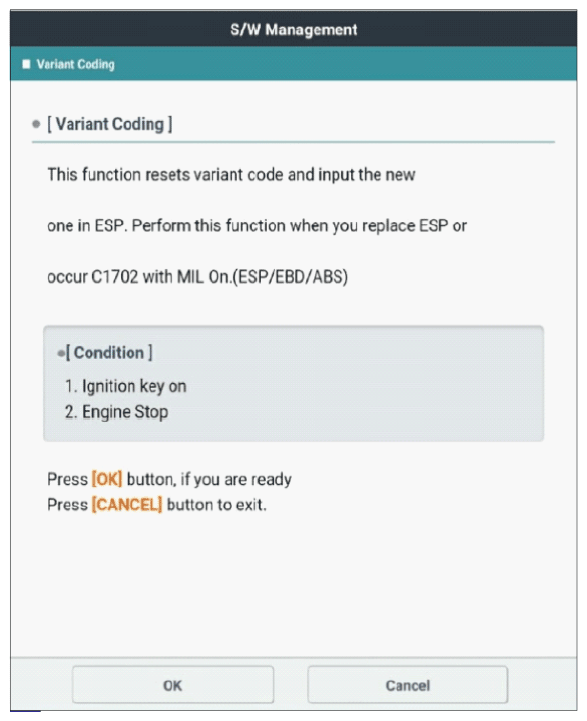

G12839331Courtesy of KIA MOTORS AMERICA, INC.

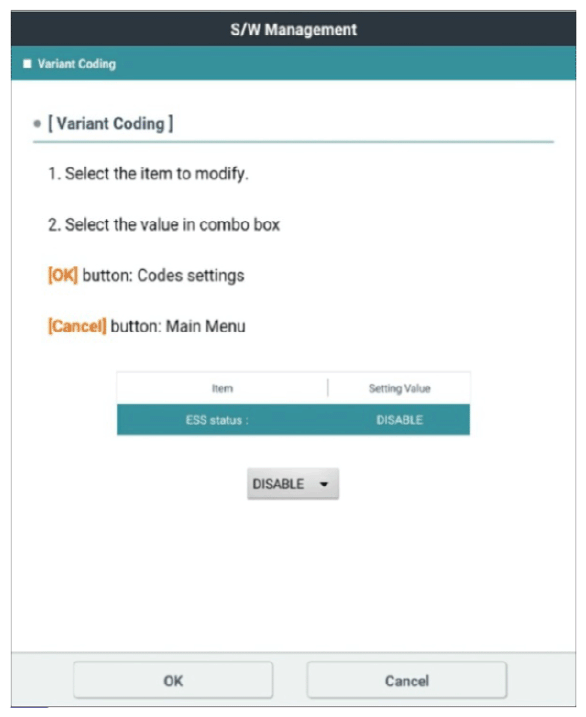

G12839332Courtesy of KIA MOTORS AMERICA, INC.

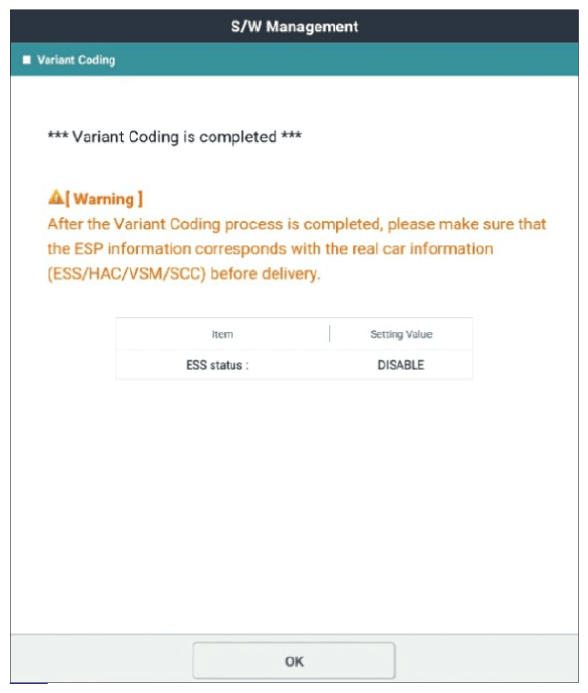

G12839333Courtesy of KIA MOTORS AMERICA, INC.

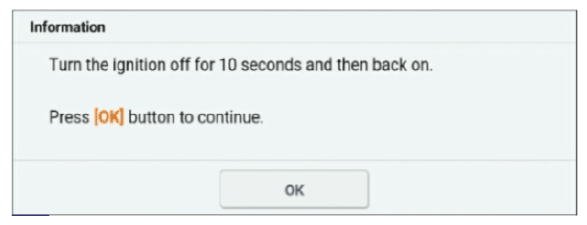

G12839334Courtesy of KIA MOTORS AMERICA, INC.
