Washer Fluid Level Sensor Switch

  1. Disconnect the negative (-) battery terminal.
  2. Drain the washer fluid to less than 600 cc.
  3. Check for continuity between terminals No. 1 and No. 2 in each float position.

    There should be continuity when the float is down.

    There should be no continuity when the float is up.

  4. If the continuity is not as specified, replace the washer fluid level switch.
    G13047612Courtesy of KIA MOTORS AMERICA, INC.

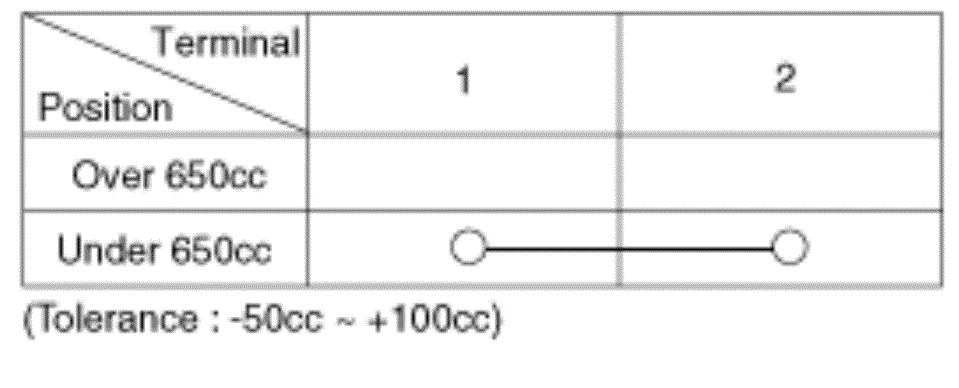

    G13047613Courtesy of KIA MOTORS AMERICA, INC.
  5. If the continuity is not as specified, replace the washer fluid level switch (A).
G13047614Courtesy of KIA MOTORS AMERICA, INC.
