Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - Repair Procedures - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Turn the ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the second row seat LH
(Refer to Body - "REAR SEAT ASSEMBLY ")

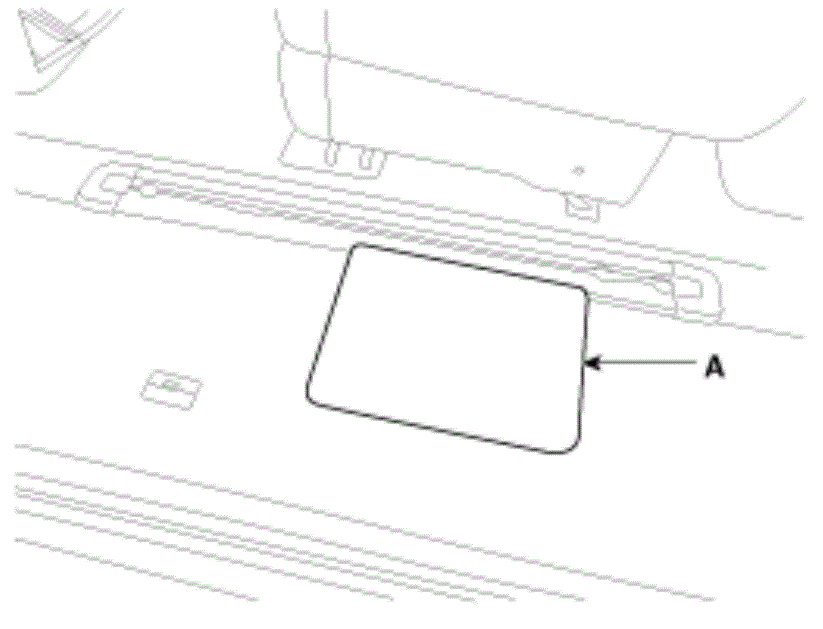

Open the floor mat (A).

Courtesy of KIA MOTORS AMERICA, INC.

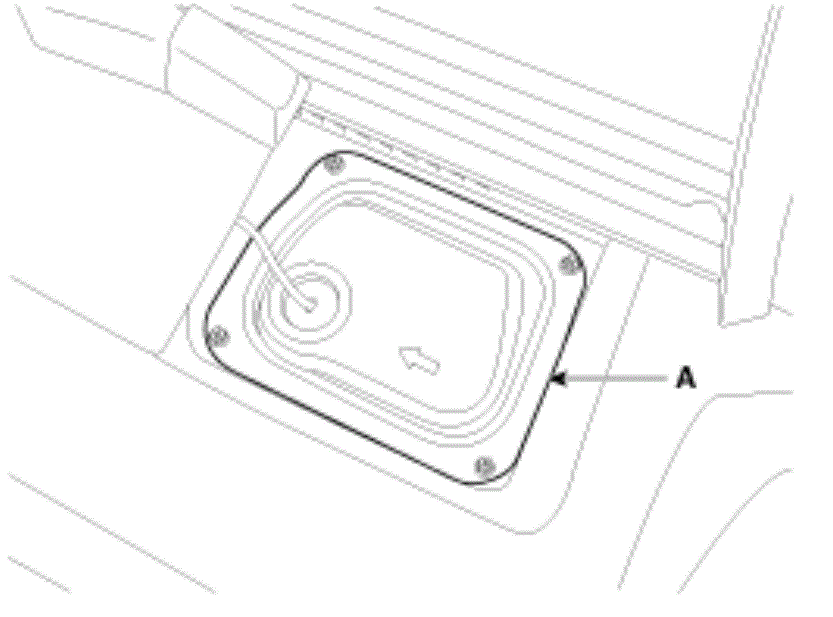

Remove the fuel pump service cover (A

Courtesy of KIA MOTORS AMERICA, INC.

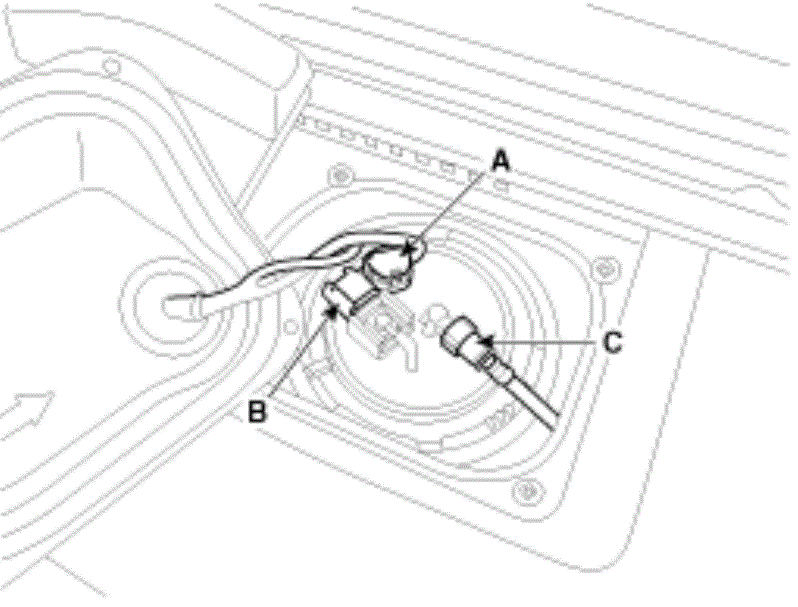

Disconnect the fuel pump connector (A), fuel tank pressure sensor (B) and fuel feed tube quick-connector (C).

Courtesy of KIA MOTORS AMERICA, INC.

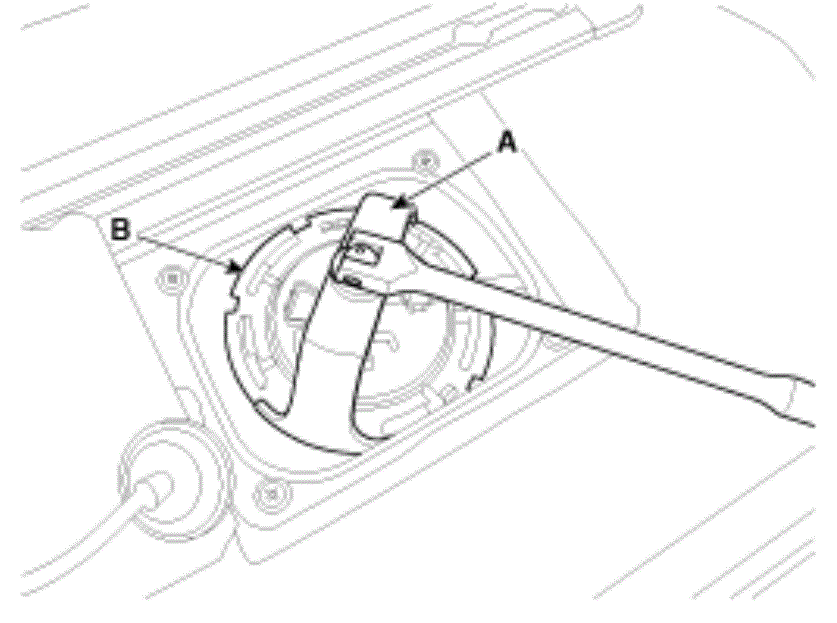

Remove the fuel pump plate cover (B) by using the special service tool (A) [SST NO.: 09310-B8100].

Courtesy of KIA MOTORS AMERICA, INC.

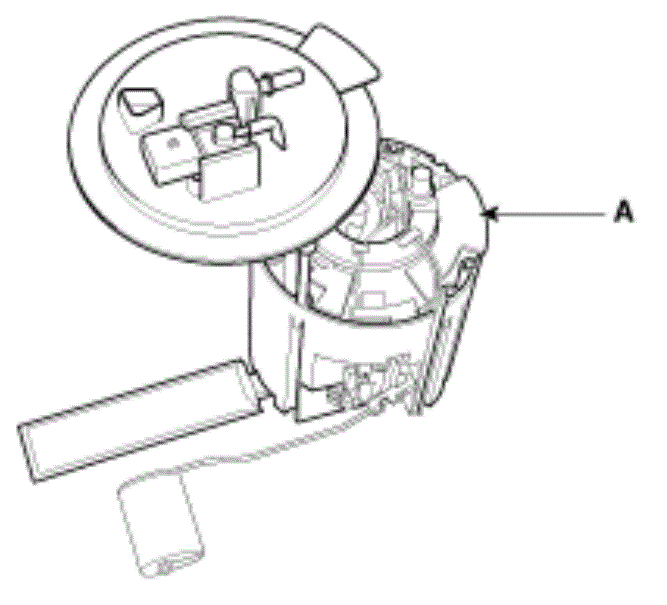

Remove the fuel pump (A).

Courtesy of KIA MOTORS AMERICA, INC.
