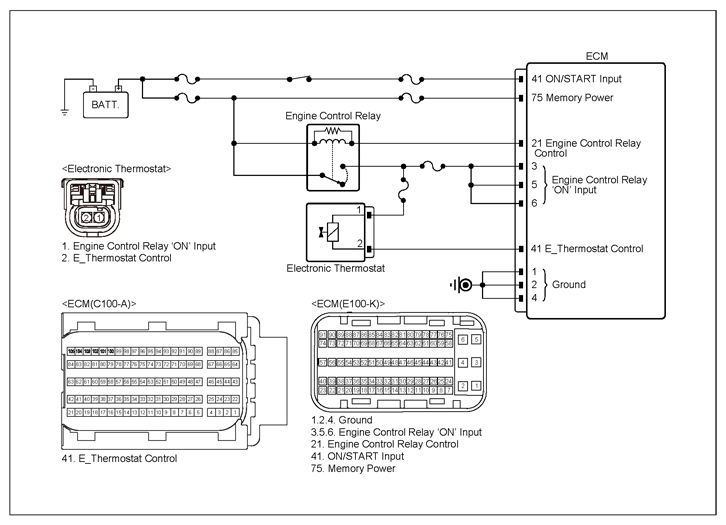

Circuit Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Thermostat connector	1 (Power)	Chassis ground	-	B+
	Thermostat connector	2 (Control)	Chassis ground	-	Approx. 0.77V

Good

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
