Monitor KDS/GDS Data

Vehicle S/W Management: Read VIN procedure
Inspection Condition	Inspection Procedure	Reference
Ignition "ON", engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS/GDS.	Figures below.

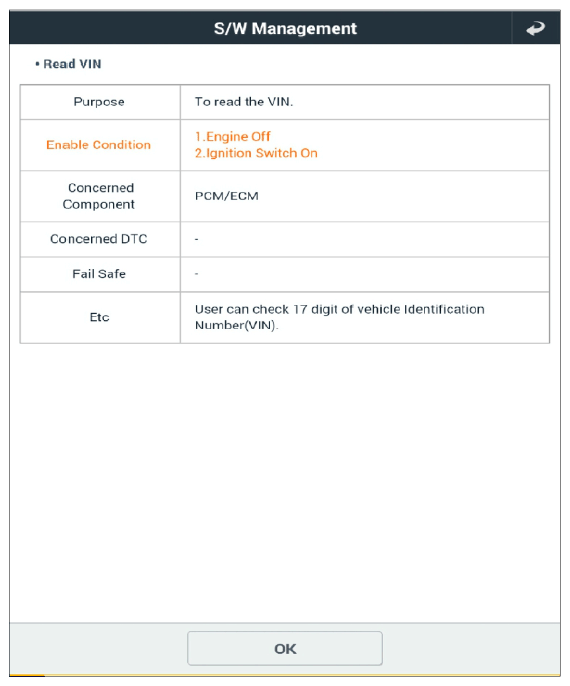

G12580297

Courtesy of KIA MOTORS AMERICA, INC.

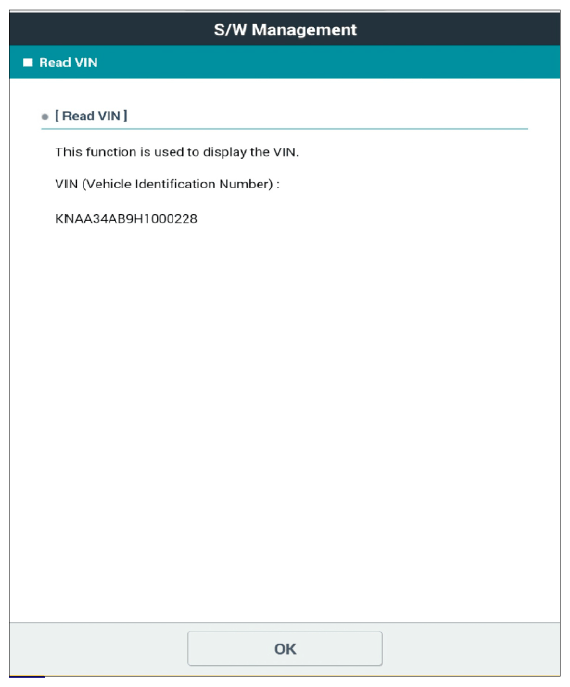

G12580298

Courtesy of KIA MOTORS AMERICA, INC.

Good

Make sure actual VIN and read VIN is matched each other.
Go to "Verification of Repair " procedure.

No Good

Go to "Writing VIN on ECM/PCM" procedure.

Vehicle S/W Management: Write VIN procedure
Inspection Condition	Inspection Procedure	Reference
Ignition "ON", engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS/GDS.	Figures below.

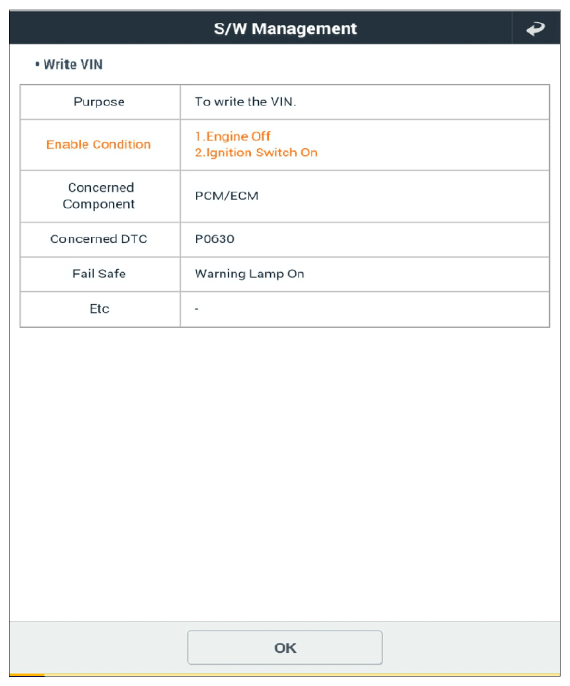

G12580299

Courtesy of KIA MOTORS AMERICA, INC.

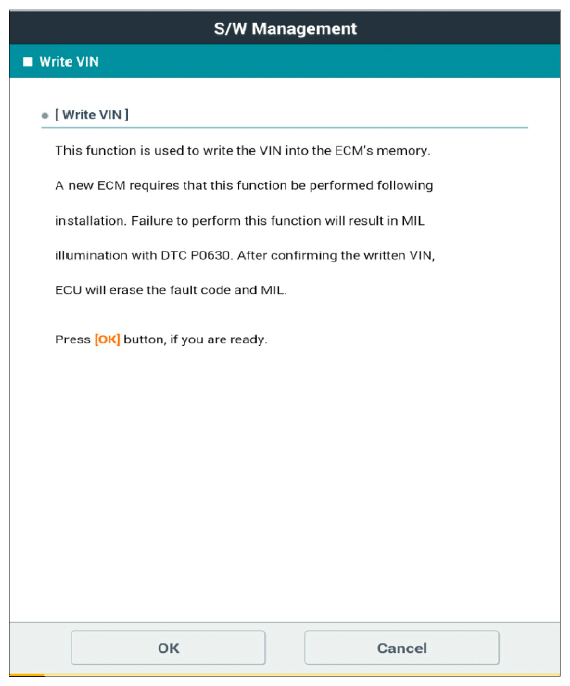

G12580300

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Verification of Vehicle Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ECM/PCM and go to "Verification of Repair " procedure.
