Repair Procedures: Removal

  1. Release the residual pressure in the fuel line.

    (Refer to Fuel Delivery System - "Release Pressure in FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

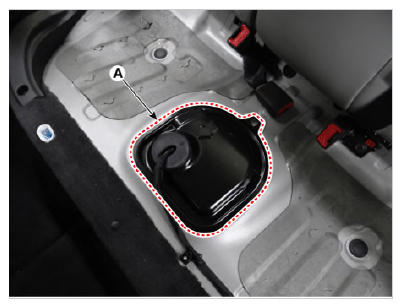

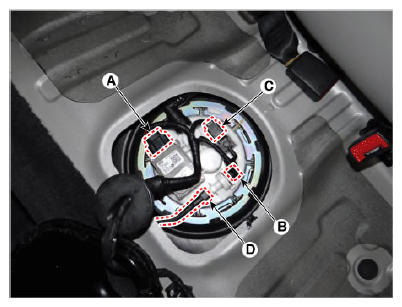

  4. Remove the fuel pump service cover (A).
    G12576669Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel tank pressure sensor connector (C).
  8. Disconnect the fuel feed tube quick-connector (D)
    G12576670Courtesy of KIA MOTORS AMERICA, INC.
  9. Lift the vehicle.

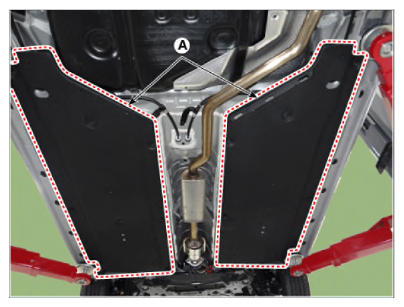

  10. Remove the side under cover (A).
    G12576671Courtesy of KIA MOTORS AMERICA, INC.

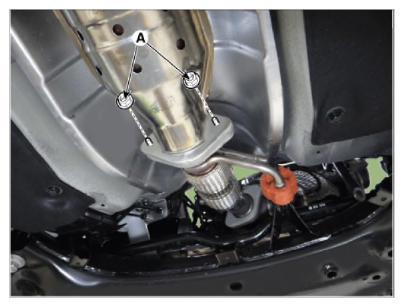

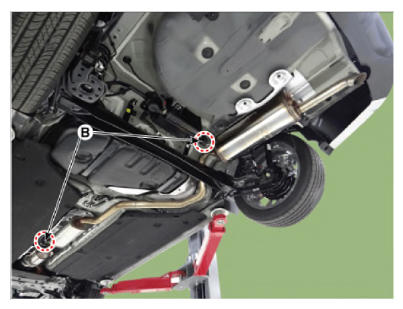

  11. Place the center muffler on the rear suspension after removing the mounting nuts (A) and hanger (B).
    G12576672Courtesy of KIA MOTORS AMERICA, INC.
    G12576673Courtesy of KIA MOTORS AMERICA, INC.

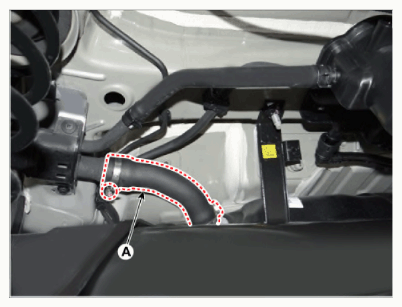

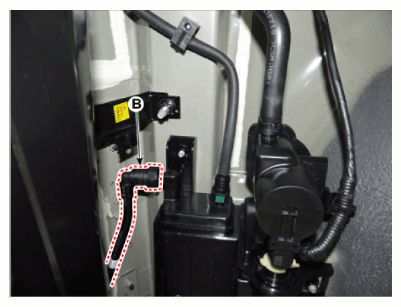

  12. Disconnect the fuel filler hose (A), vapor tube quick-connector (B).
    G12576674Courtesy of KIA MOTORS AMERICA, INC.
    G12576675Courtesy of KIA MOTORS AMERICA, INC.

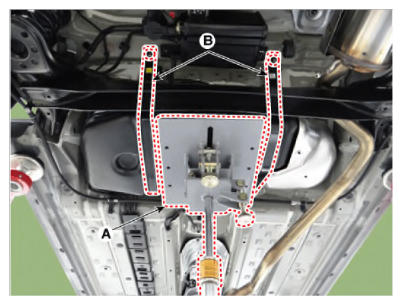

  13. Support the fuel tank on a jack (A).
  14. Remove the fuel tank from the vehicle after removing the fuel tank band (B).
    G12576676Courtesy of KIA MOTORS AMERICA, INC.

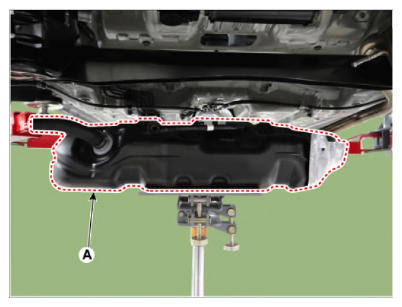

  15. Remove the fuel tank (A).
    G12576677Courtesy of KIA MOTORS AMERICA, INC.
