Repair Procedures: Removal

  1. Release the residual pressure in the fuel line.

    (Refer to Fuel Delivery System - "Release Pressure in  FUEL LINE  ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

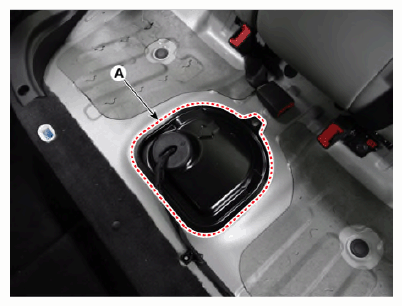

  4. Remove the fuel pump service cover (A).
    G12576679Courtesy of KIA MOTORS AMERICA, INC.

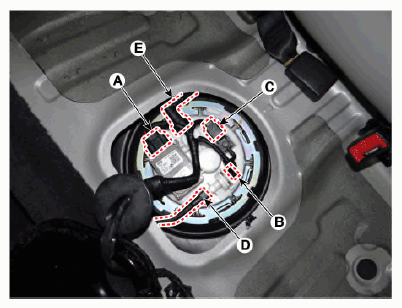

  5. Disconnect the fuel pump control module connector (A).
  6. Disconnect the fuel pressure sensor connector (B).
  7. Disconnect the fuel tank pressure sensor connector (C).
  8. Disconnect the fuel feed tube quick-connector (D)
  9. Disconnect the vapor tube quick-connector (E).
    G12576680Courtesy of KIA MOTORS AMERICA, INC.

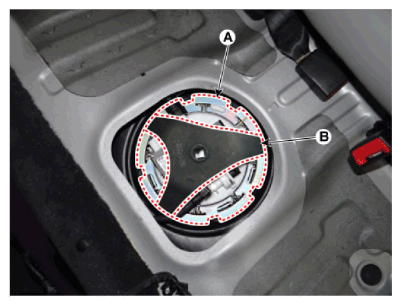

  10. Remove the locking ring (A) by using the special service tool (B) [No.: 09310-F3100].
    G12576681Courtesy of KIA MOTORS AMERICA, INC.
