Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - " FUEL PUMP  ")

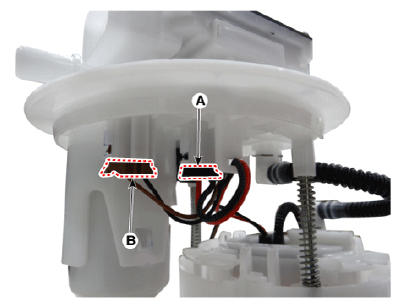

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G12576700Courtesy of KIA MOTORS AMERICA, INC.

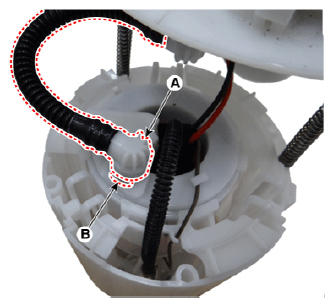

  3. Disconnect the fuel feed tube quick-connector (A) after removing the fixing clip (B).
    G12576701Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the cushion pipe fixing clip (A), and then separate the head assembly from reservoir cup.
    G12576702Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the reservoir-cup (B) after releasing the fixing hooks (A).
    G12576703Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the ground pin (A).
    G12576704Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the free-filter (A) after releasing the fixing hooks.
    G12576705Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the fixing clip (A), and then assist pump assembly (B).
    G12576706Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

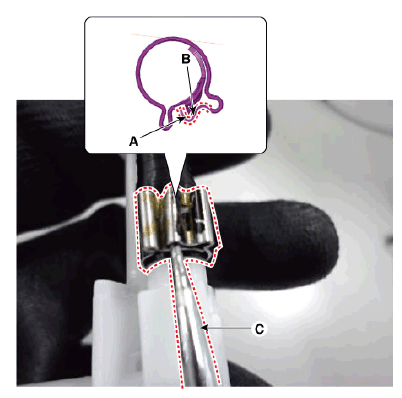

    1. Unhook the clip (A, B) by using an awl (C).
      G12576707Courtesy of KIA MOTORS AMERICA, INC.

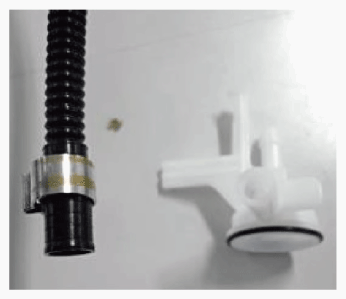

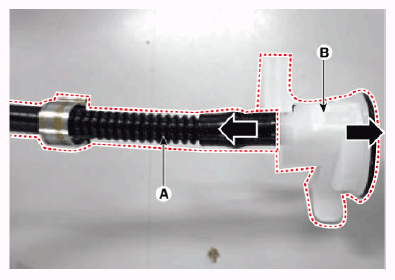

    2. Separate the tube (A) with the assist pump (B) by pulling it
      G12576708Courtesy of KIA MOTORS AMERICA, INC.
      G12576709Courtesy of KIA MOTORS AMERICA, INC.

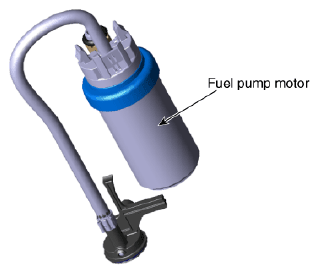

  9. Remove the fuel pump motor (A) from the fuel filter (B).
    G12576710Courtesy of KIA MOTORS AMERICA, INC.
    G12576711Courtesy of KIA MOTORS AMERICA, INC.
