Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

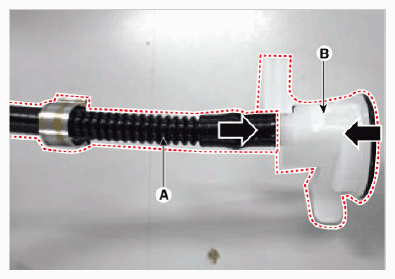

    1. Put the tube (A) into the assist pump (B).
      G12576712Courtesy of KIA MOTORS AMERICA, INC.

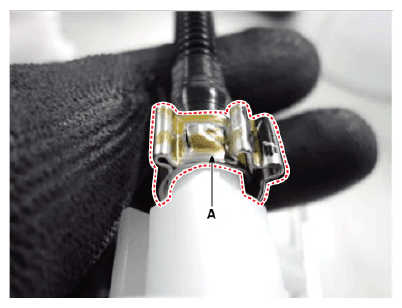

    2. Put the clip (A) on the joint.
      G12576713Courtesy of KIA MOTORS AMERICA, INC.

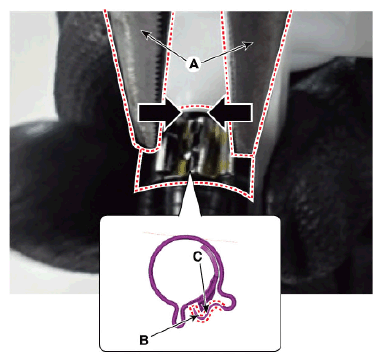

    3. Hook the clip (B, C) by using plier (A).
      G12576714Courtesy of KIA MOTORS AMERICA, INC.

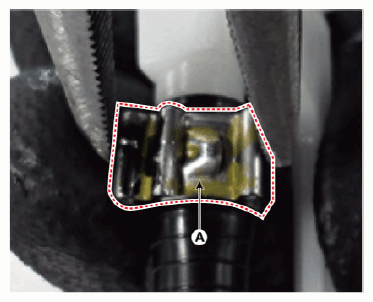

    4. Fix the clip (A).
      G12576715Courtesy of KIA MOTORS AMERICA, INC.
