Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - " FUEL PUMP  ")

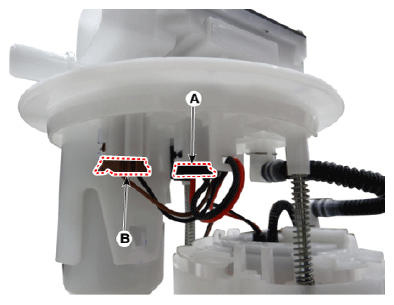

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G12576719Courtesy of KIA MOTORS AMERICA, INC.

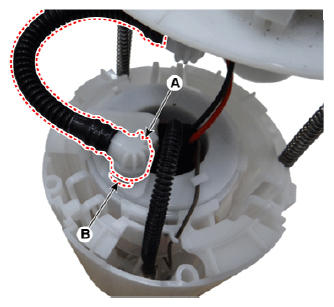

  3. Disconnect the fuel feed tube quick-connector (A) after removing the fixing clip (B).
    G12576720Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the cushion pipe fixing clip (A), and then separate the head assembly from reservoir cup.
    G12576721Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the reservoir-cup (B) after releasing the fixing hooks (A).
    G12576722Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the ground pin (A).
    G12576723Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the fuel pressure regulator (B) after removing the fixing pin (A).
    G12576724Courtesy of KIA MOTORS AMERICA, INC.
    G12576725Courtesy of KIA MOTORS AMERICA, INC.
