Repair Procedures: Removal

  1. Release the residual pressure in the fuel line.

    (Refer to Fuel Delivery System - "Release Pressure in  FUEL LINE  ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the intake manifold.

    (Refer to Engine Mechanical System - " INTAKE MANIFOLD  ")

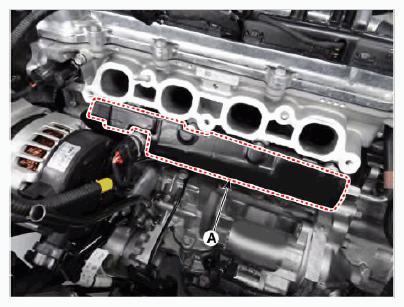

  4. Remove the injector foam (A).
    G12576738Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the high pressure fuel pipe.

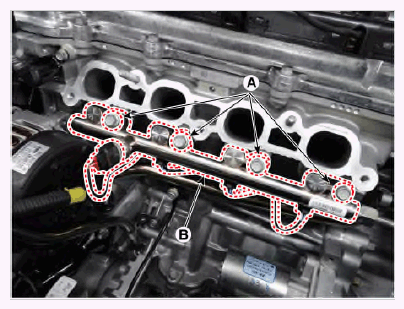

  6. Remove the installation bolts (A), and then remove the delivery pipe and injector assembly (B) from the engine.
    G12576739Courtesy of KIA MOTORS AMERICA, INC.

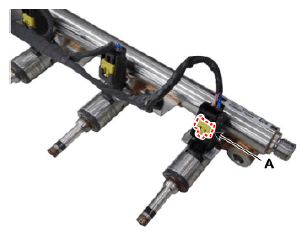

  7. Disconnect the injector connector (A)
    G12576740Courtesy of KIA MOTORS AMERICA, INC.

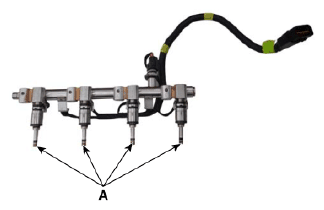

  8. Remove the fixing clip, and then and then separate the injector (A) from the delivery pipe.
    G12576741Courtesy of KIA MOTORS AMERICA, INC.
