Components And Components Location

Components

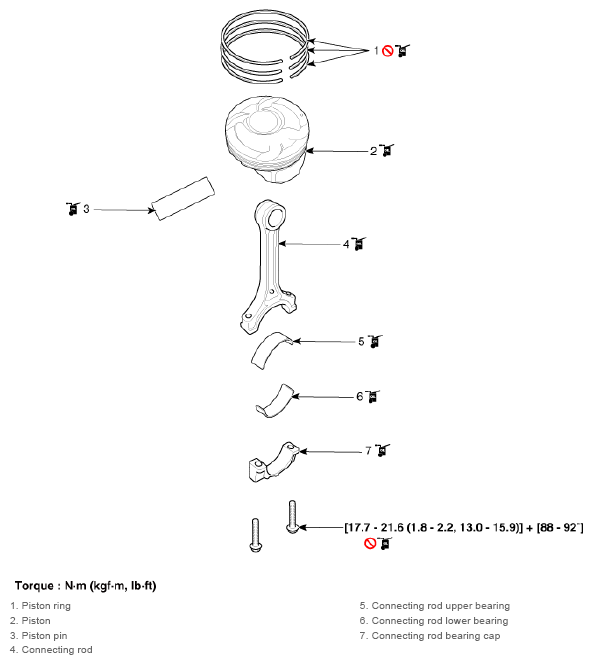

Fig 1: Piston And Connecting Rod Components With Torque Specification
G12576005Courtesy of KIA MOTORS AMERICA, INC.
