Repair procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
- Be careful not to scratch the body surface.
- Remove the trunk lid trim.
(Refer to Trunk Lid - "TRUNK LID TRIM ")

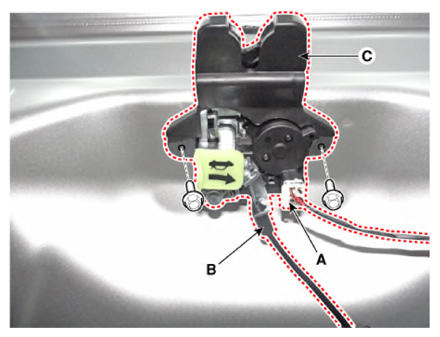

- Disconnect the connector (A) and cable (B) and then loosen the bolt and remove the trunk lid latch (C).
- Install in the reverse order of removal.
Information
- Make sure that the trunk lid locks/unlocks and opens/closes properly.
- Replace any damaged clips.
