Repair procedures: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down, or right and left.
  2. Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
  3. After loosening the trunk lid striker (C) mounting bolts, adjust the trunk lid striker by moving it up and down, or right and left.

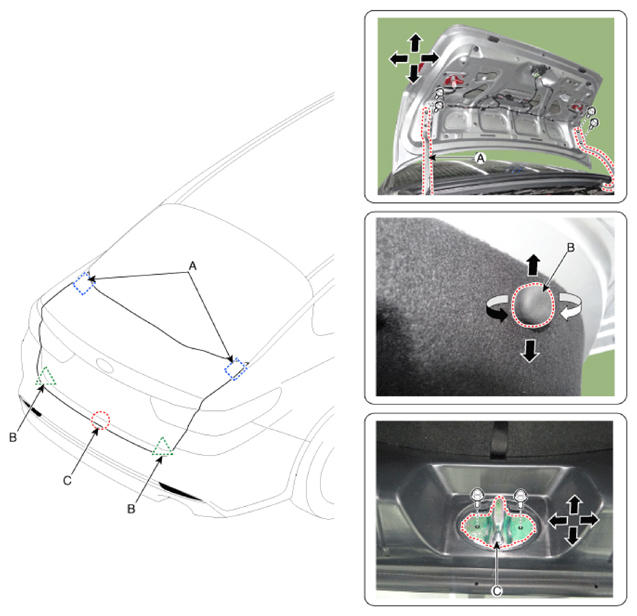

G13157579Courtesy of KIA MOTORS AMERICA, INC.
