Multimedia Jack

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

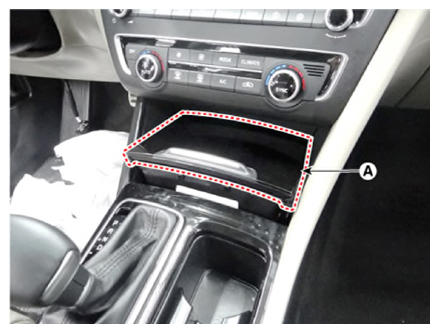

  2. Remove the floor console tray (A).

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

    G13157874Courtesy of KIA MOTORS AMERICA, INC.

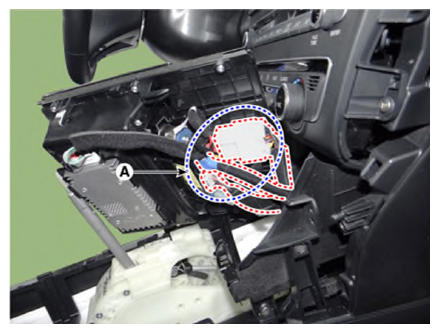

  3. Remove the floor console tray after disconnecting the connectors (A).
    G13157875Courtesy of KIA MOTORS AMERICA, INC.

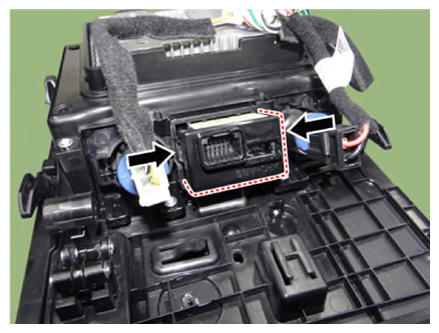

  4. Remove the multimedia jack (A) after releasing the fixed hooks.
    G13157876Courtesy of KIA MOTORS AMERICA, INC.

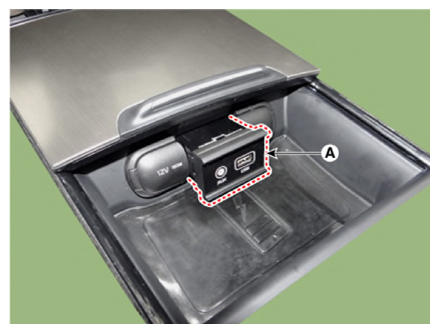

    G13157877Courtesy of KIA MOTORS AMERICA, INC.
