Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front door module.

    (Refer to Front Door - "FRONT DOOR MODULE ")

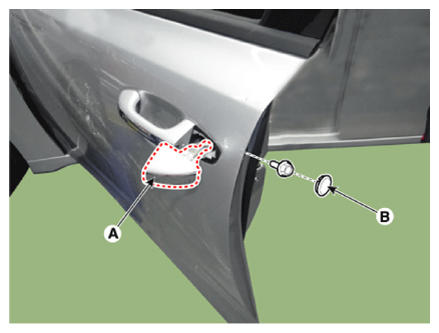

  2. Remove the plug hole cap (B) and then loosen the bolt and remove the door lock assembly (A).

    Tightening torque:

    6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

    G13157244Courtesy of KIA MOTORS AMERICA, INC.

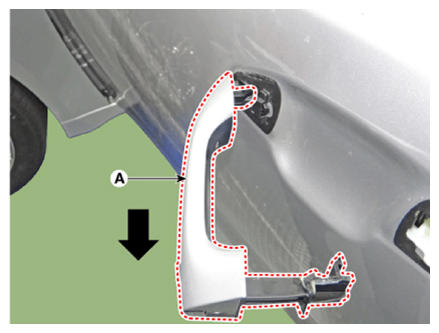

  3. Remove the front door outside handle (A) by sliding it rearward.
    G13157245Courtesy of KIA MOTORS AMERICA, INC.

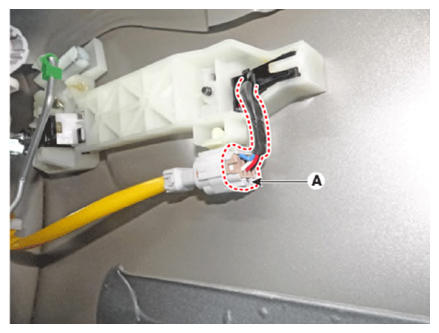

  4. Disconnect the front door outside handle connector (A).
    G13157246Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.

    Information

    • Make sure that the connector is connected properly.
    • Make sure that the door locks/unlocks and opens/closes properly.
