Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

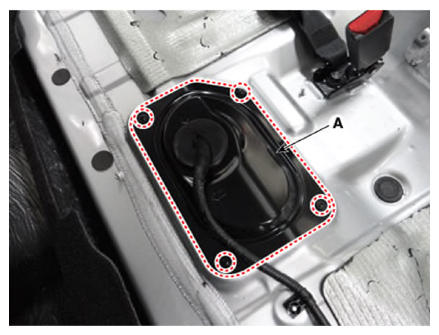

  3. Remove the fuel pump service cover (A) in the trunk.
    G13155811Courtesy of KIA MOTORS AMERICA, INC.

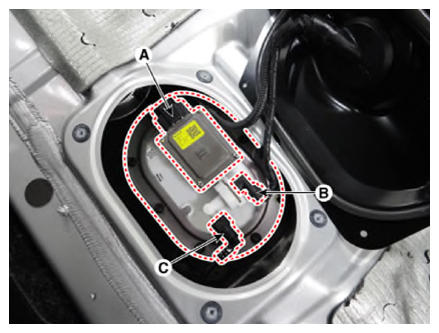

  4. Disconnect the fuel feed tube quick-connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel pump control module (C).
    G13155812Courtesy of KIA MOTORS AMERICA, INC.
  7. Lift the vehicle.
  8. Remove the rear muffler.

    (Refer to Engine Mechanical System - "MUFFLER ")

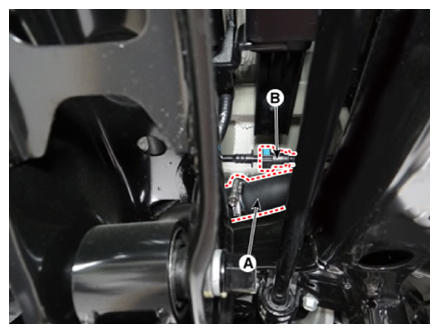

  9. Disconnect the fuel filler hose (A) and leveling tube (B).
    G13155813Courtesy of KIA MOTORS AMERICA, INC.

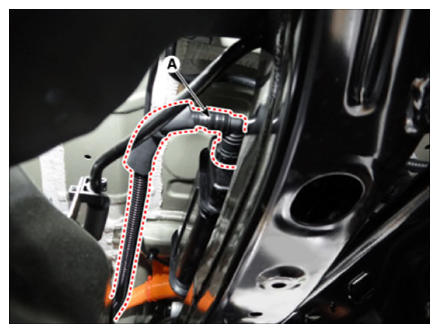

  10. Disconnect the vapor hose quick-connector (A).
    G13155814Courtesy of KIA MOTORS AMERICA, INC.

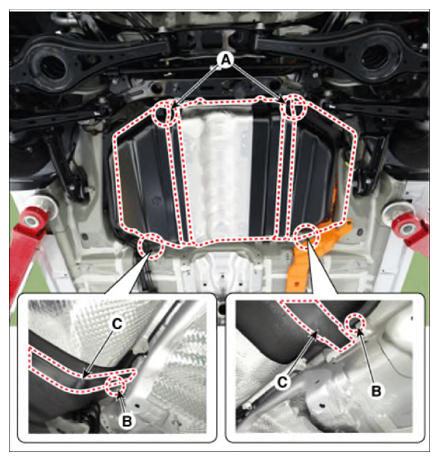

  11. After loosening the rear side fuel tank band mounting nut (A), remove the fuel tank band (C) from the gap (B) between front side fuel tank and body.

    Fuel tank band mounting nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

    G13155815Courtesy of KIA MOTORS AMERICA, INC.

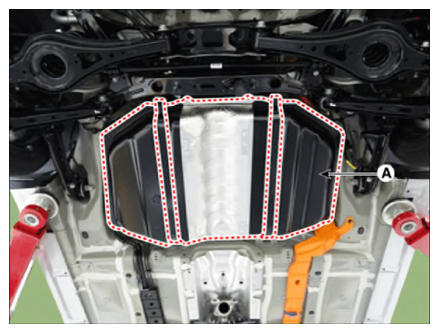

  12. Remove the fuel tank (A).
    G13155816Courtesy of KIA MOTORS AMERICA, INC.
