Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

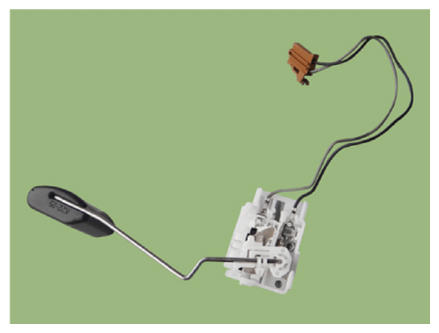

G13155839Courtesy of KIA MOTORS AMERICA, INC.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

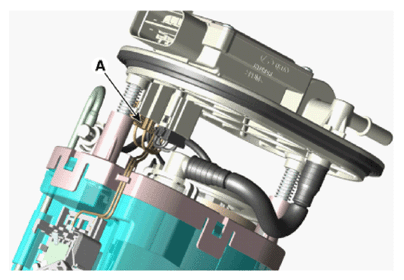

  2. Disconnect the fuel sender connector (A).
    G13155840Courtesy of KIA MOTORS AMERICA, INC.

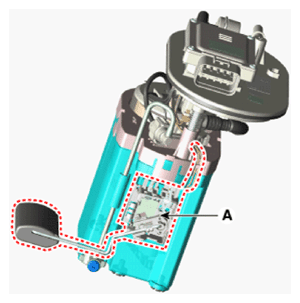

  3. Remove the fuel sender (A) after releasing the fix hook.
    G13155841Courtesy of KIA MOTORS AMERICA, INC.
