Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

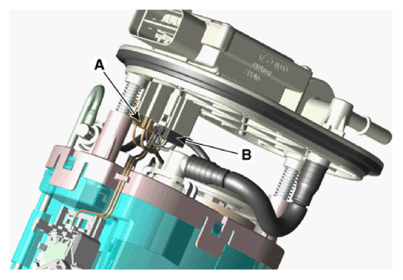

  2. Remove the fuel pump motor connector (A) and fuel sender connector (B).
    G13155842Courtesy of KIA MOTORS AMERICA, INC.

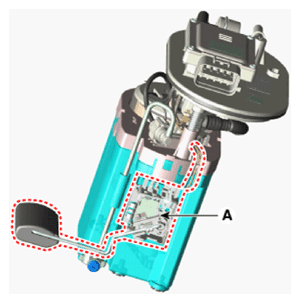

  3. Lift the fixing hook by using a common driver, and then remove the fuel sender (A).
    G13155843Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the reservoir cup (B) after releasing the fixing hooks (A).
    G13155844Courtesy of KIA MOTORS AMERICA, INC.

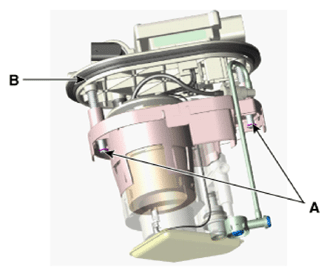

  5. Remove the head assembly (B) after releasing the fixing hooks (A).
    G13155845Courtesy of KIA MOTORS AMERICA, INC.

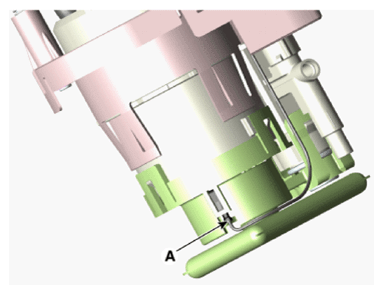

  6. Disconnect the ground cable (A).
    G13155846Courtesy of KIA MOTORS AMERICA, INC.

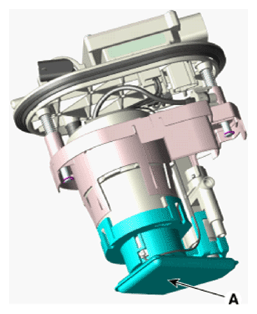

  7. Remove the free-filter (A) after releasing the fixing hooks.
    G13155847Courtesy of KIA MOTORS AMERICA, INC.

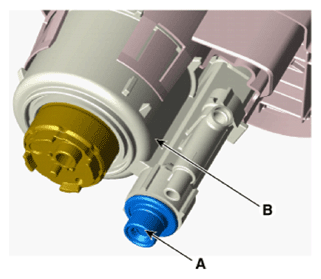

  8. Remove the fuel pressure regulator (A) from the fuel filter (B).
    G13155848Courtesy of KIA MOTORS AMERICA, INC.
