Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Open the sunglasses case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

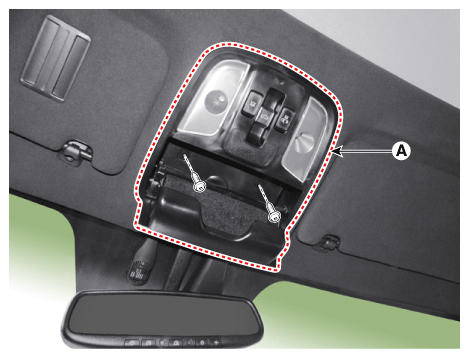

    G12351239Courtesy of KIA MOTORS AMERICA, INC.

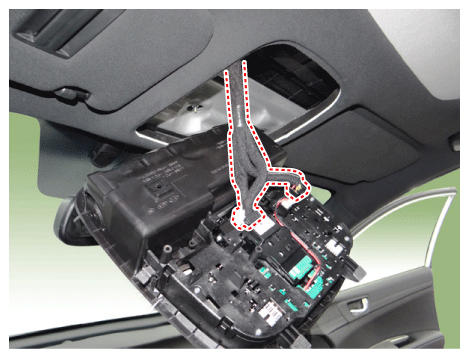

    G12351240Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the hands free Mic (A) after loosening the mounting screws.

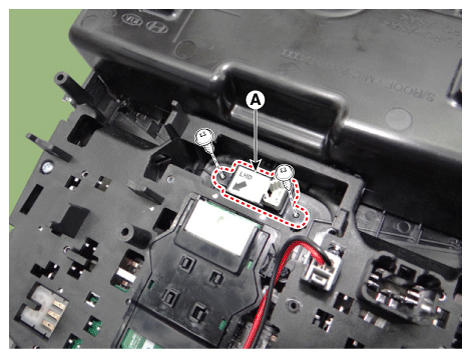

    G12351241Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between terminals.

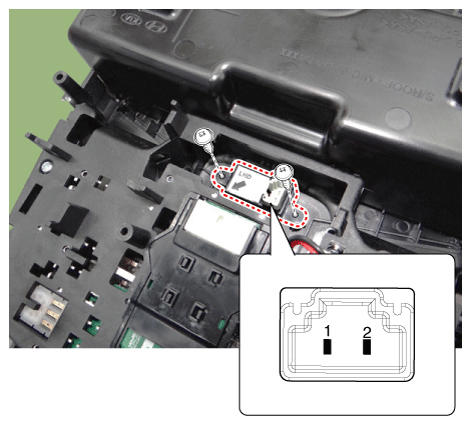

Fig 1: Mic Connector End View
G12351242Courtesy of KIA MOTORS AMERICA, INC.

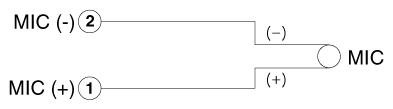

G12351243Courtesy of KIA MOTORS AMERICA, INC.
