Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater & A/C control unit.

    (Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT ")

  3. Disconnect the VESS unit connector (A).

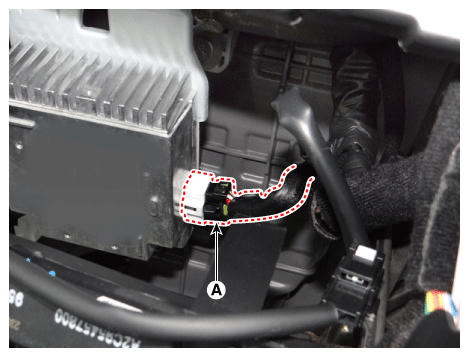

    Fig 1: Locating VESS Unit Connector
    G12314514Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the VESS unit (A) after loosening the nuts.

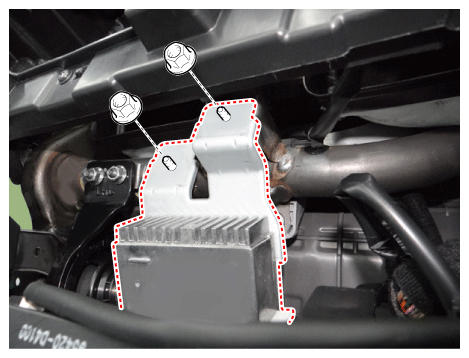

    Fig 2: Locating VESS Unit With Nuts
    G12314515Courtesy of KIA MOTORS AMERICA, INC.
