Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

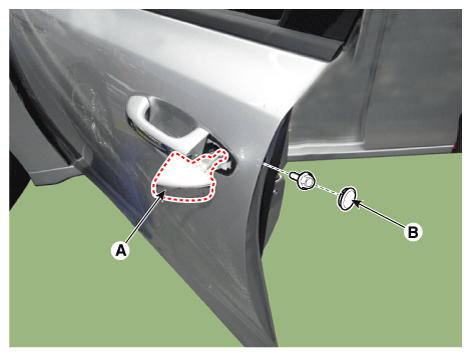

Remove the plug hole cap (B) and then loosen the bolt and remove the door lock assembly (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

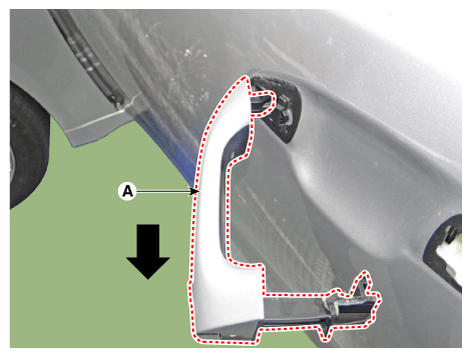

Remove the front door outside handle (A) by sliding it rearward.

Courtesy of KIA MOTORS AMERICA, INC.

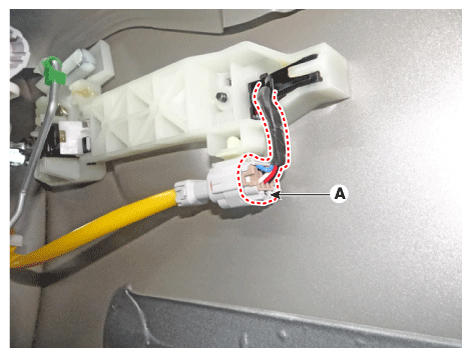

Disconnect the front door outside handle connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure that the connector is connected properly.
Make sure that the door locks/unlocks and opens/closes properly.
