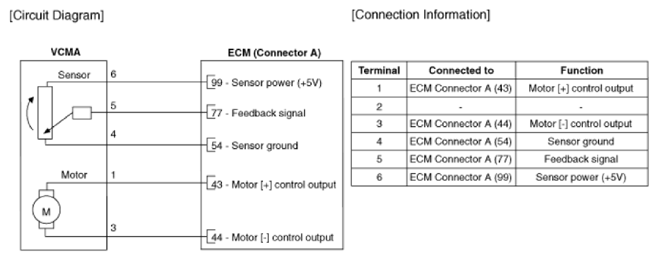

Home >> Kia >> 2019 >> Optima SX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L (Except HEV) >> Variable Charge Motion (VCMA) >> Schematic Diagrams >> Circuit diagram >> Notes
