Bank 1/Sensor 2

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

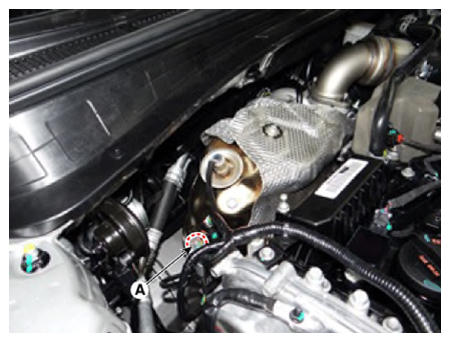

G12922318Courtesy of KIA MOTORS AMERICA, INC.

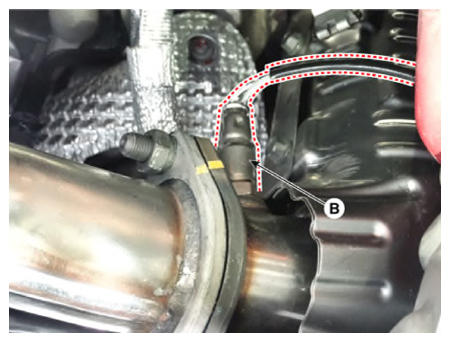

G12922319Courtesy of KIA MOTORS AMERICA, INC.
