Repair procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

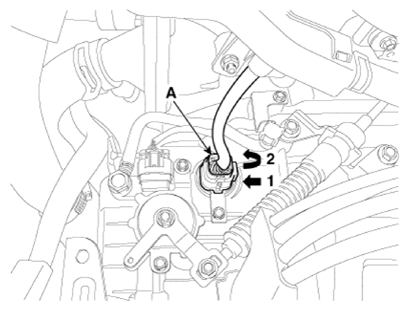

  3. Disconnect the solenoid valve connector (A).
    G12922520Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between power terminal (14) and signal terminal (8).

    Specification  : Approx. 0.88 MΩ

    G12922521Courtesy of KIA MOTORS AMERICA, INC.
