Repair Procedures: Installation

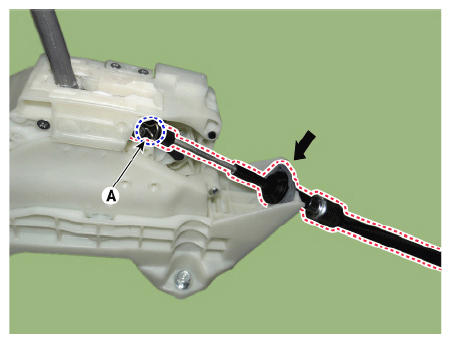

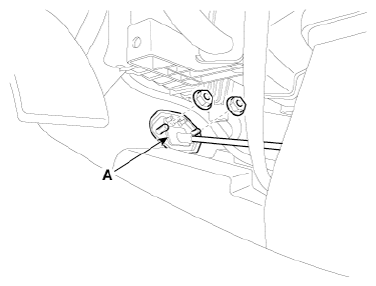

Insert the snap pin (A) after installing the shift cable.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

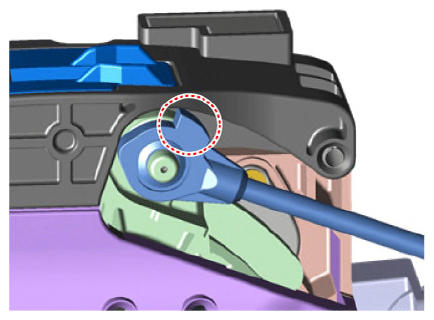

Install the shift cable after checking the direction of projection to prevent wrong assembly.

Courtesy of KIA MOTORS AMERICA, INC.

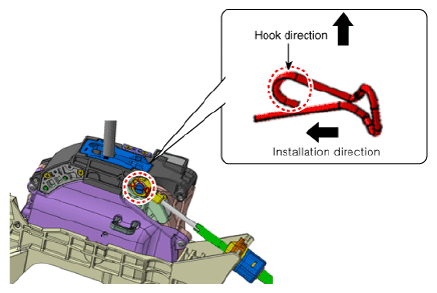

Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

Install the floor console assembly.
(Refer to Body "FLOOR CONSOLE ")

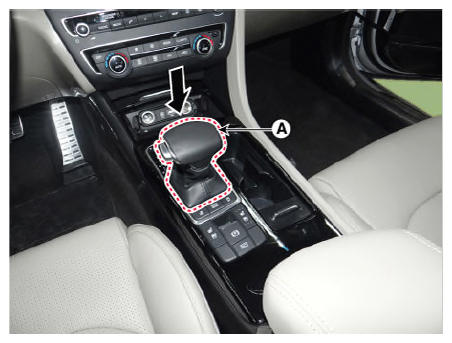

Install the knob (A) by pressing it in the direction of arrow after installing the boots to the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.

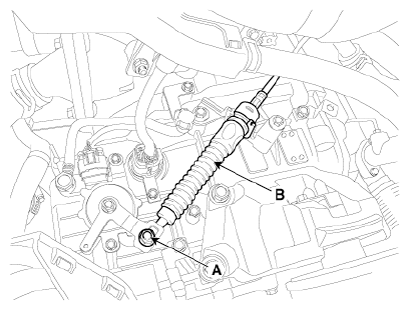

Install the shift cable (B) to bracket and then lightly tighten the nut (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip must be replaced with new one. (Do not reuse it.)

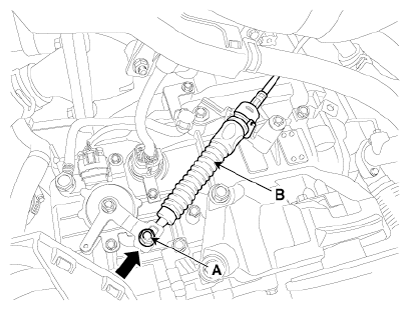

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable (B) in the direction of the arrow.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
