Repair Procedures: Installation
- Install in the reverse order of removal.NOTE:
- The existing valve body cover gasket must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
- Refill the automatic transaxle with fluid.
(Refer to Hydraulic System- "FLUID ")

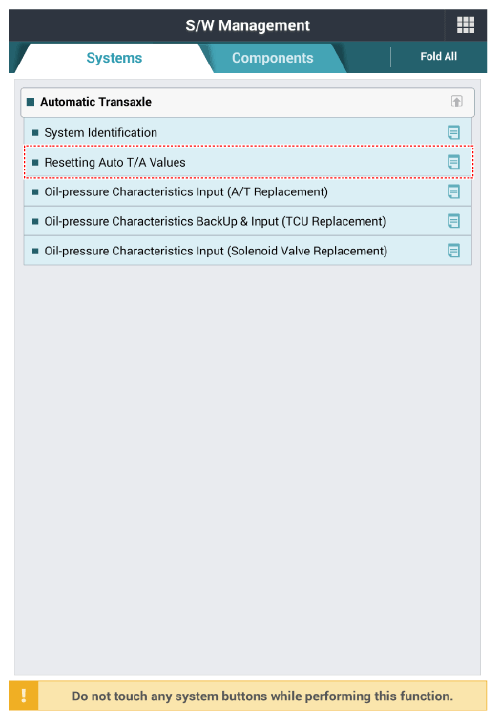

- Reset the automatic transaxle adaptive values using the KDS.
- Perform the TCM adaptive values learning procedure.
(Refer to Automatic Transaxle Control System - "Repair procedures ")
- Confirm that there is no fluid leakage on connections after repairing.
