Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.

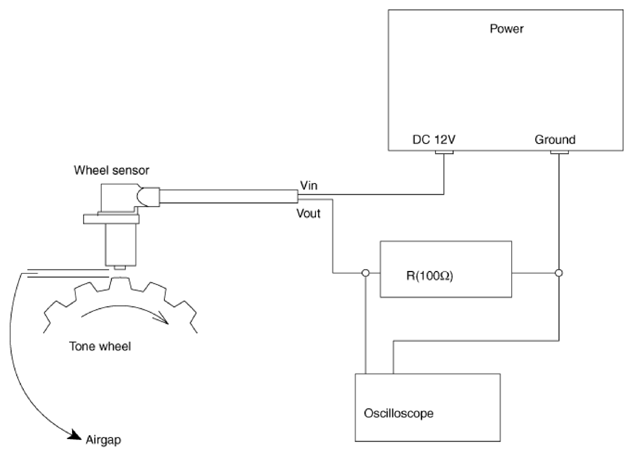

- Measure the output voltage between the terminal of the wheel speed sensor and the body ground.NOTE: In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ω resister must be used as shown.
- Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.
V_low: 0.59V - 0.84V
V_high: 1.18V - 1.68V
Frequency range: 1 - 2, 500Hz
