Repair procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

CAUTION:

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Be careful not to scratch the body surface.

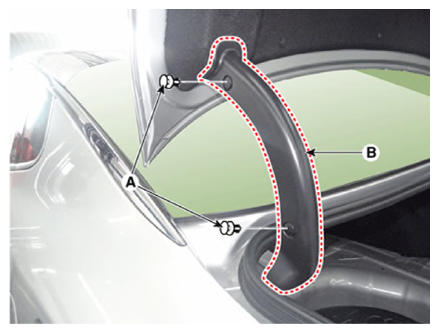

Remove the clip (A) and then remove the trunk lid hinge cover (B).

Courtesy of KIA MOTORS AMERICA, INC.

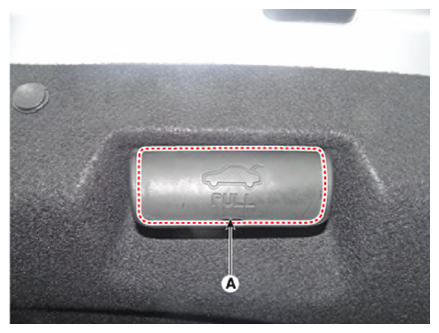

Raise the cover (A) using an auger.

Courtesy of KIA MOTORS AMERICA, INC.

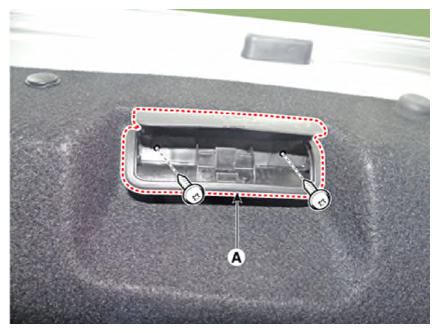

Loosen the mounting screw and remove the trunk handle (A).

Courtesy of KIA MOTORS AMERICA, INC.

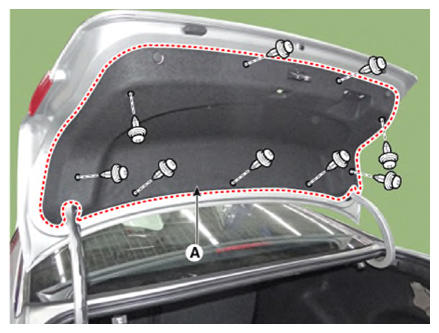

After loosening the mounting screw and clips, remove the trunk lid trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
