Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

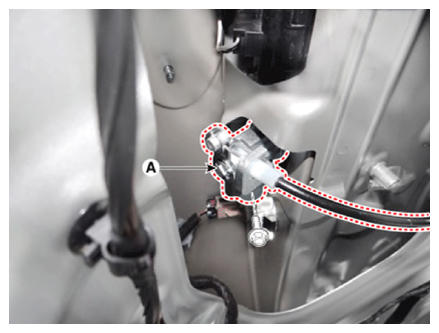

  3. Remove the trunk key set (A) after loosening the bolt.
    G13157896Courtesy of KIA MOTORS AMERICA, INC.

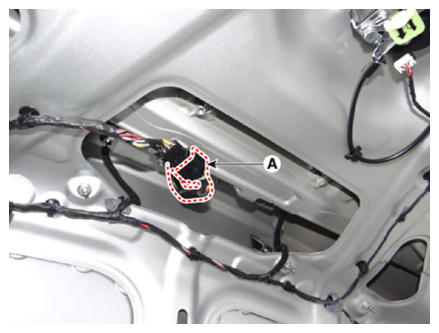

  4. Disconnect the back view camera connector (A).
    G13157897Courtesy of KIA MOTORS AMERICA, INC.

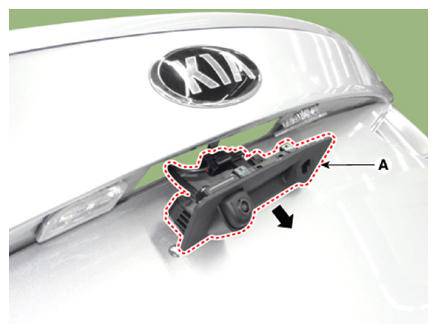

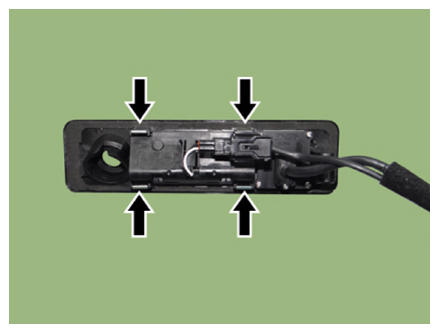

  5. Remove the back view camera assembly (A) after pressing the locking pin.
    G13157898Courtesy of KIA MOTORS AMERICA, INC.
    G13157899Courtesy of KIA MOTORS AMERICA, INC.
