Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".
- Disconnect Passenger side Body sensor ECU connector.

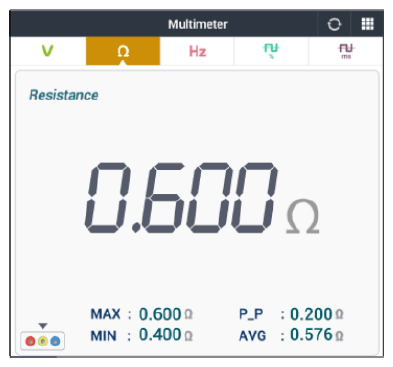

- Measure voltage between Pin No. 4 (Ground) terminal of the passenger side body sensor ECU harness connector and chassis ground.
Specification: Approx. below 1Ω
- Is the measured resistance within specification?
YES
- Go to "CAN COMMUNICATION LINE SIGNAL WAVEFORM INSPECTION " procedure.
NO
- Check for open/short in harness.
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
