Monitor DTC status
WARNING: This page is about a different variant/trim than selected.
- Connect KDS to Data Link Connector (DLC).
- Ignition ON/Hybrid ready (Cluster Indicator "READY" ON) vehicle parked.

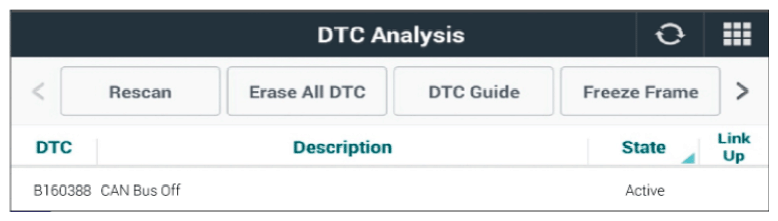

- Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
- Is DTC status displayed as present?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
