Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

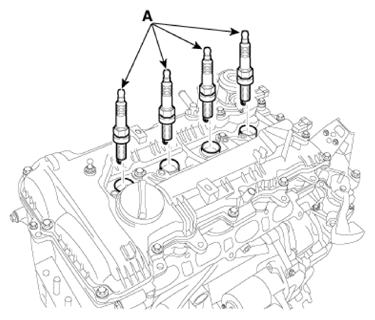

- Using a spark plug wrench, remove the spark plug (A).
spark plug :
14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 Ib.ft)
NOTE: Be careful that no contaminates enter into spark plug holes.
