Rear side impact sensor (R-SIS)
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.
- Remove the rear seat.
(Refer to Body (Interior and Exterior) - "REAR SEAT ")

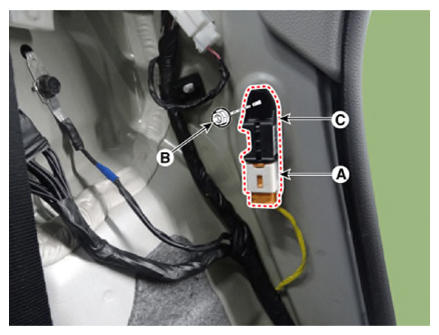

- Remove the rear side impact sensor connect (A).
- Loosen the rear side impact sensor nut (B), and remove the sensor (C).
Tightening torque :
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.6 lb.ft)
