Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

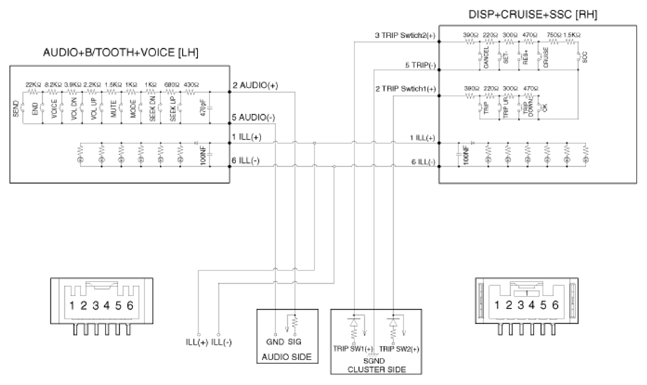

G13157816Courtesy of KIA MOTORS AMERICA, INC.

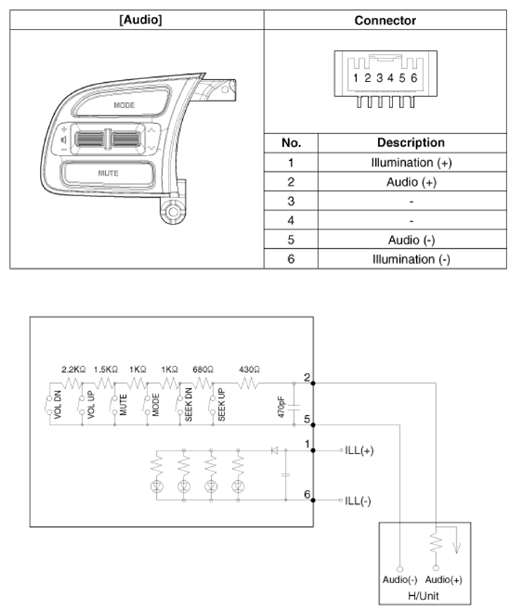

G13157817Courtesy of KIA MOTORS AMERICA, INC.

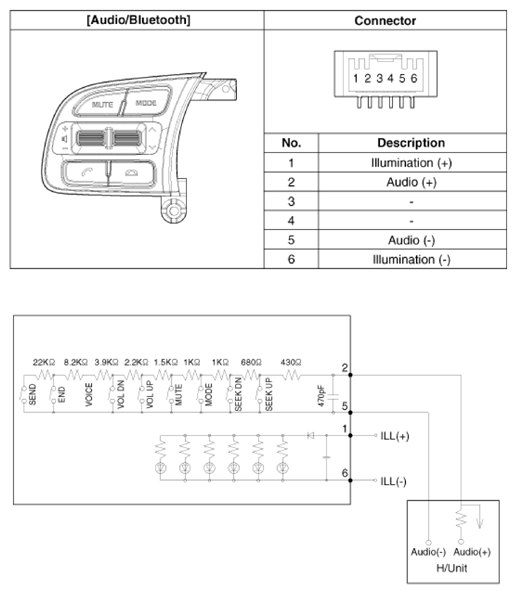

G13157818Courtesy of KIA MOTORS AMERICA, INC.

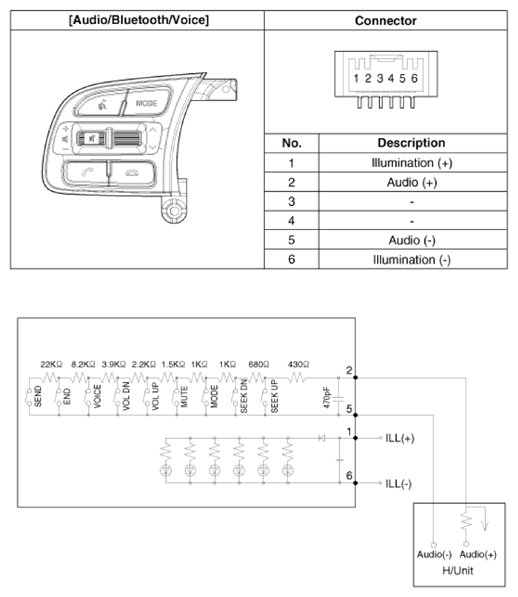

G13157819Courtesy of KIA MOTORS AMERICA, INC.

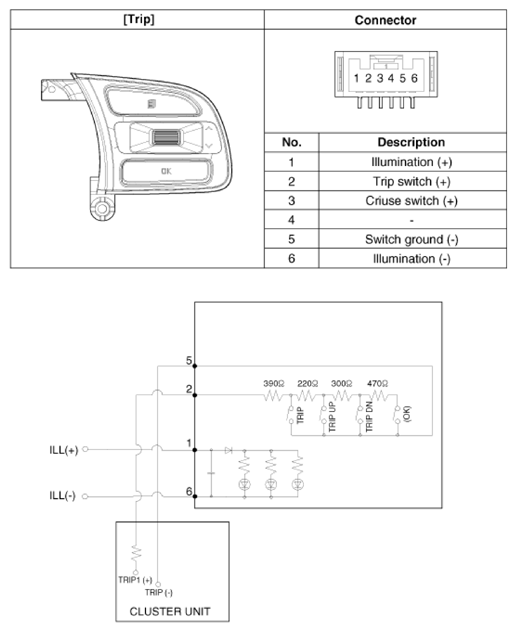

G13157820Courtesy of KIA MOTORS AMERICA, INC.

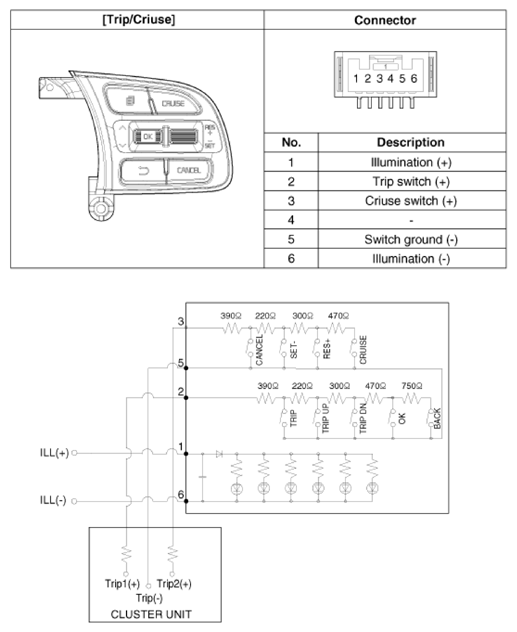

G13157821Courtesy of KIA MOTORS AMERICA, INC.

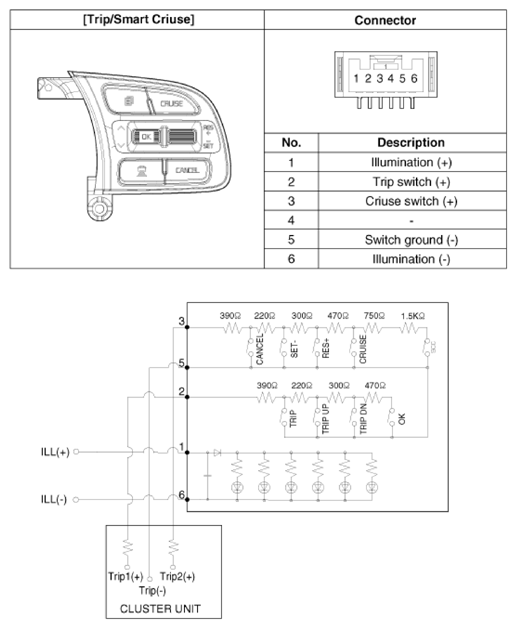

G13157822Courtesy of KIA MOTORS AMERICA, INC.

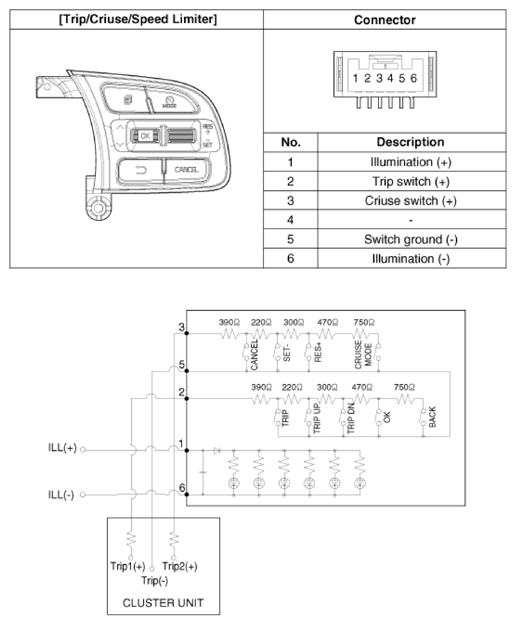

G13157823Courtesy of KIA MOTORS AMERICA, INC.

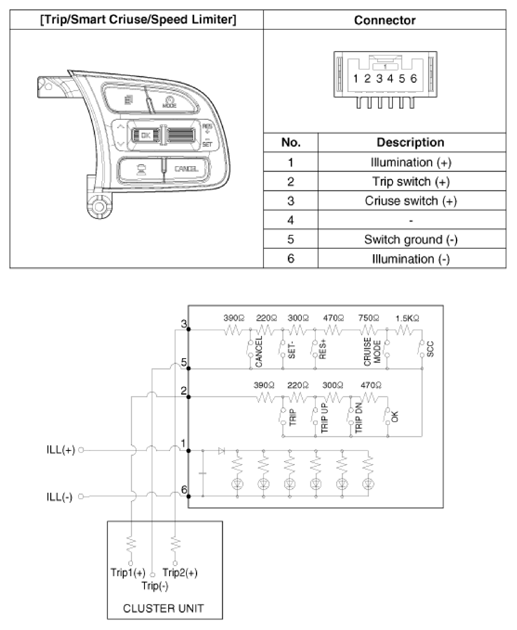

G13157824Courtesy of KIA MOTORS AMERICA, INC.
