Fuel Tank Pressure Sensor (FTPS): Specifications: Specification

WARNING: This page is about a different variant/trim than selected.

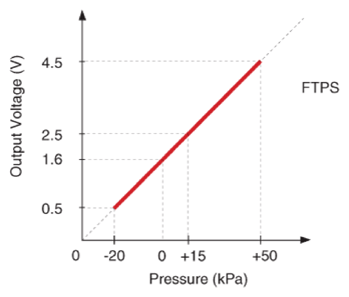

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V) [Vref = 5V]
-20 0.5
0 1.6
15 2.5
50 4.5
G13155762Courtesy of KIA MOTORS AMERICA, INC.
