Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

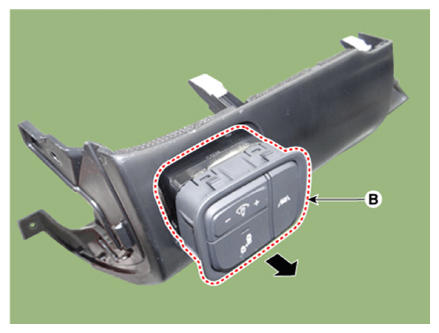

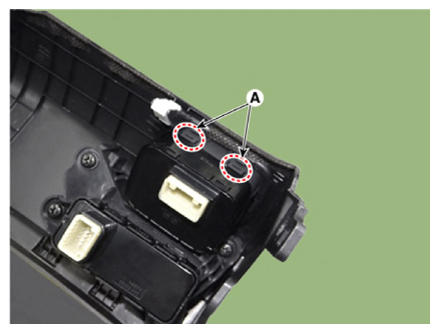

  3. Remove the rheostat switch (B) after pressing the locking pin (A).
    G13158253Courtesy of KIA MOTORS AMERICA, INC.
    G13158254Courtesy of KIA MOTORS AMERICA, INC.

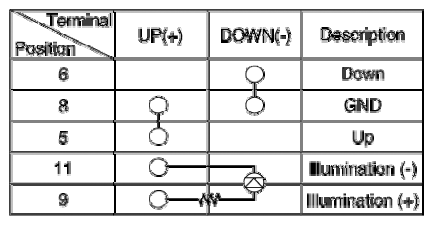

  4. Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.
    G13158255Courtesy of KIA MOTORS AMERICA, INC.
    G13158256Courtesy of KIA MOTORS AMERICA, INC.
