Stop/Tail lamp

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear combination lamp.

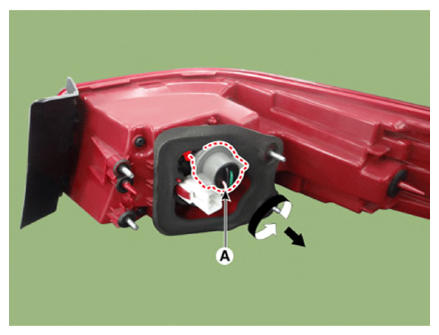

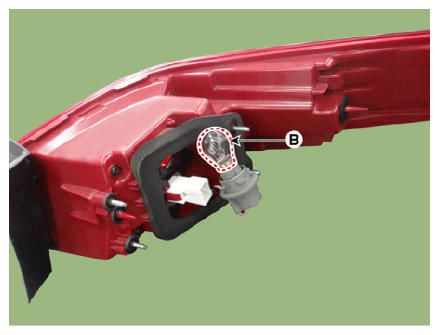

  2. Remove the stop/tail lamp bulb (B) by turning the socket (A) counterclockwise.
    G13158265Courtesy of KIA MOTORS AMERICA, INC.
    G13158266Courtesy of KIA MOTORS AMERICA, INC.
