Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

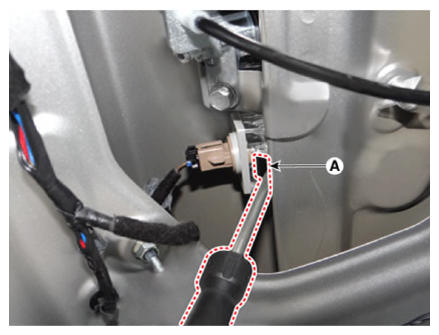

  3. Remove the license lamp assembly after pressing the locking pin (A).
    G13158258Courtesy of KIA MOTORS AMERICA, INC.

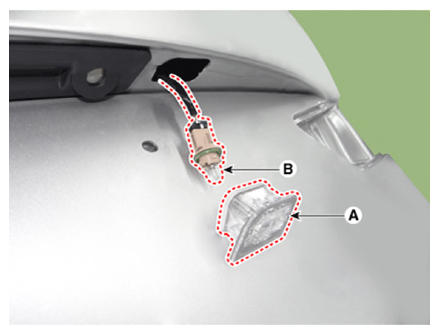

  4. Remove the license lamp bulb (B) after removing the license lamp socket (A).
    G13158259Courtesy of KIA MOTORS AMERICA, INC.
