Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear package tray trim.

    (Refer to Body - "REAR PACKAGE TRAY TRIM ")

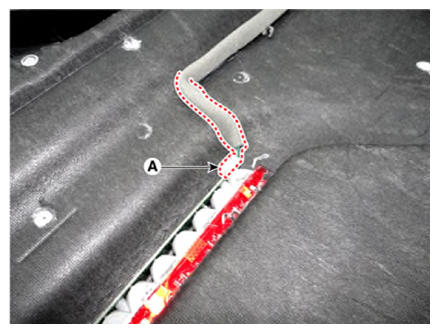

  3. Disconnect the high mounted stop lamp connector (A).
    G13158260Courtesy of KIA MOTORS AMERICA, INC.

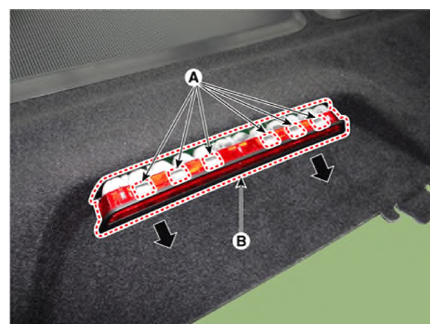

  4. Remove the high mounted stop lamp (B) after pressing the mounting clips (A).
    G13158261Courtesy of KIA MOTORS AMERICA, INC.
