Bulb (high/low)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the headlamp.
  2. Remove the dust caps (A) from the headlamp assembly after turning in the counterclockwise direction.

    [Low]

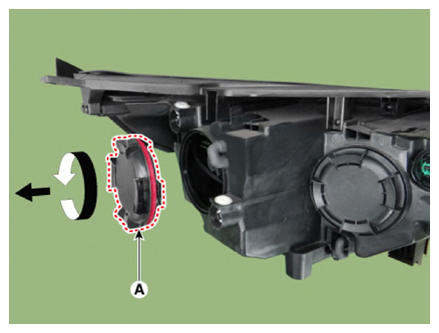

    G13158201Courtesy of KIA MOTORS AMERICA, INC.

    [High]

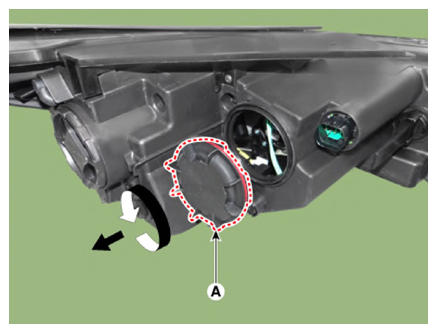

    G13158202Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the headlamp low beam bulb connector (A).
  4. Remove the headlamp low beam bulb (B) after removing the socket (C) from the headlamp assembly.

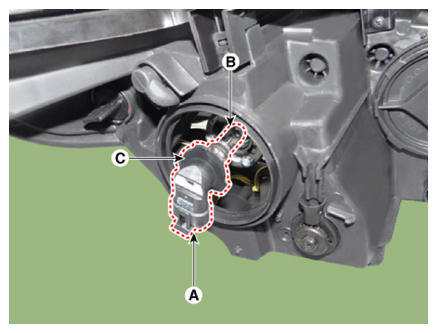

    G13158203Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the headlamp high beam bulb connector (A).
  6. Remove the headlamp high beam bulb (B) after removing the socket (C) from the headlamp assembly.

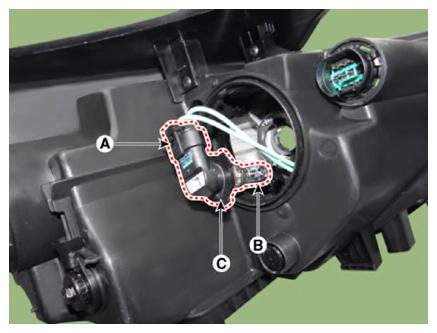

    G13158204Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
