Repair Procedures: Replacement: Ballast

WARNING: This page is about a different variant/trim than selected.
  1. Remove the headlamp.

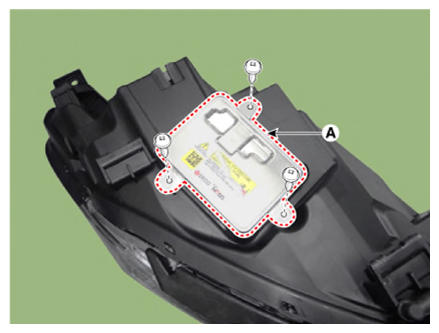

  2. Remove the ballast (A) after loosening the screws.
    G13158206Courtesy of KIA MOTORS AMERICA, INC.

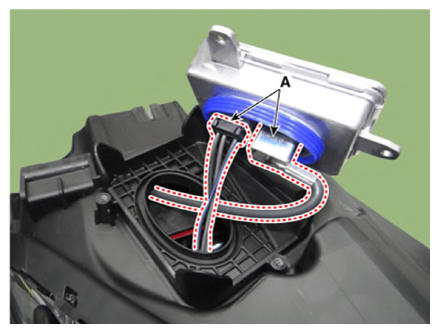

  3. Disconnect the connectors (A) from the ballast.
    G13158207Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
    CAUTION: Confirm the ballast installation
