Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.

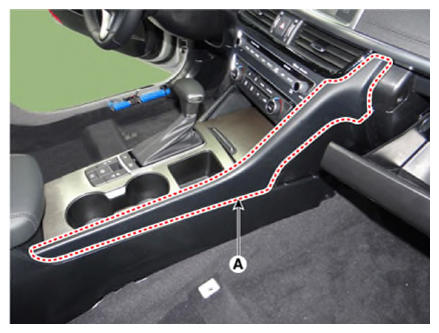

  2. Using a screwdriver or remover, remove the floor console garnish (A).
    G13158245Courtesy of KIA MOTORS AMERICA, INC.

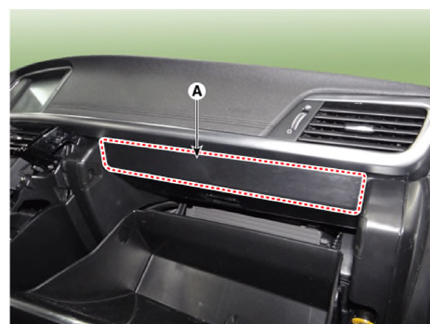

  3. Using a screwdriver or remover, remove the glove box cap (A).
    G13158246Courtesy of KIA MOTORS AMERICA, INC.

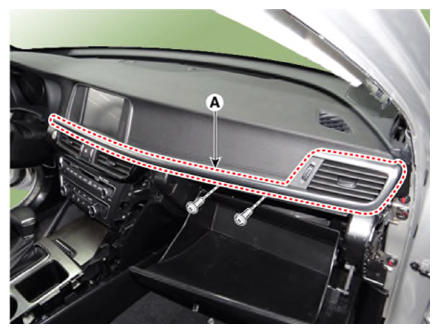

  4. Remove the crash pad garnish [RH] (A) after loosening the screws.
    G13158247Courtesy of KIA MOTORS AMERICA, INC.

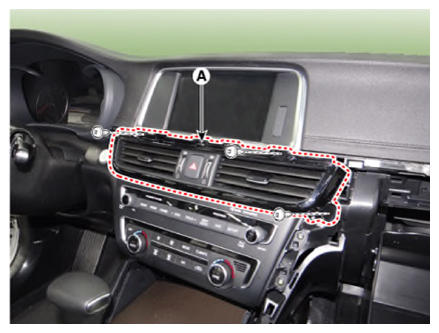

  5. Remove the center fascia panel (A) after loosening the screws.
    G13158248Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the hazard lamp switch connector (A).
    G13158249Courtesy of KIA MOTORS AMERICA, INC.

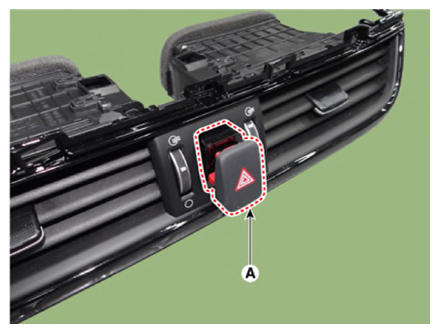

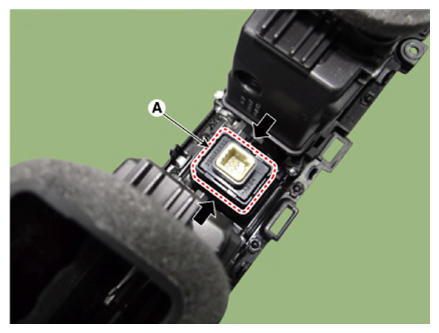

  7. Remove the hazard lamp switch (A) by pressing the locking pin.
    G13158250Courtesy of KIA MOTORS AMERICA, INC.
    G13158251Courtesy of KIA MOTORS AMERICA, INC.
